AAC Aluminum Stranded Pin Pigtail Adapter
Aluminum to Copper Transition Adapter

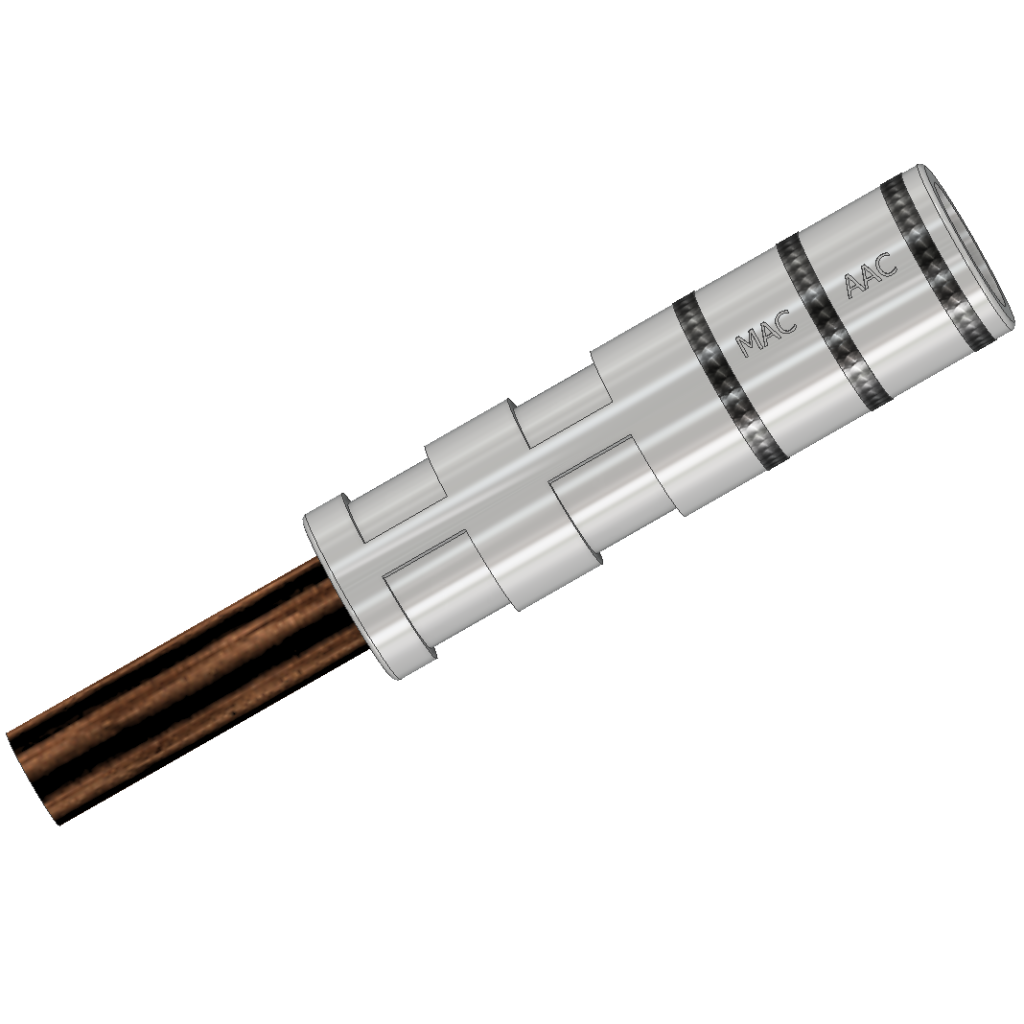

The type AAC is made of a short length of stranded tinned copper cable which is factory- compressed into a heavy- duty aluminum to copper coupler. The aluminum cable socket is prefilled with a MACTEX Inhibiting Compound. This versatile pigtail adaptor finds wide use in copper to aluminum transition connections on limiters, crabs and other secondary network applications.
Product Specifications
For custom configurations, please consult the factory.
Alum. Size Cable
Catalog Number
Copper Cable Equivalent
L - Inches
S - Inches
O.D. - Inches
1/0 Str.
AAC 1/0-2
2 Str.
2-3/4
1-3/16
0.593
2/0 Str.
AAC 2/0-1
1 Str.
3
1-1/4
0.687
3/0 Str.
AAC 3/0-1/0
1/0 Str.
3
1-1/4
0.75
4/0 Str.
AAC 4/0-2/0
2/0 Str.
3-3/8
1-7/16
0.875
250 MCM
AAC 250-3/0
3/0 Str.
3-3/8
1-7/16
0.938
300 MCM
AAC 300-4/0
4/0 Str.
3-3/4
1-9/16
1
350 MCM
AAC 350-4/0
4/0 Str.
4-5/8
1-31/32
1.125
400 MCM
ACC 400-250
250 MCM
5-5/16
2-11/32
1.187
500 MCM
AAC 500-350
350 MCM
5-3/4
2-1/2
1.312
600 MCM
AAC 600-350
350 MCM
5-3/4
2-1/2
1.438
750 MCM
AAC 750-500
500 MCM
6
2-9/16
1.5
800 MCM
AAC 800-500
500 MCM
6-1/4
2-11/16
1.625
1000 MCM
AAC 1000-750
750 MCM
6-7/8
2-15/16
1.84
