MAR Copper Reducing Adapter 600V
Heavy Duty Copper Corrugated Reducing Adapter

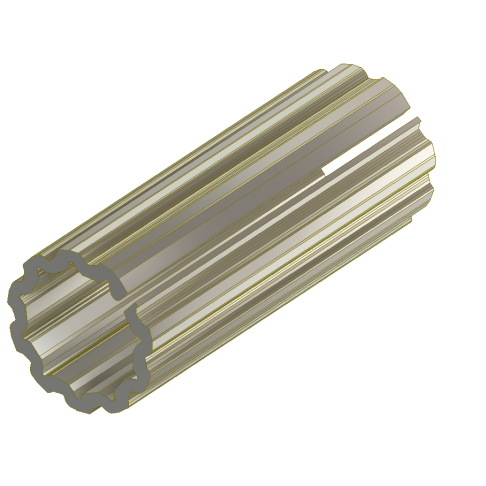

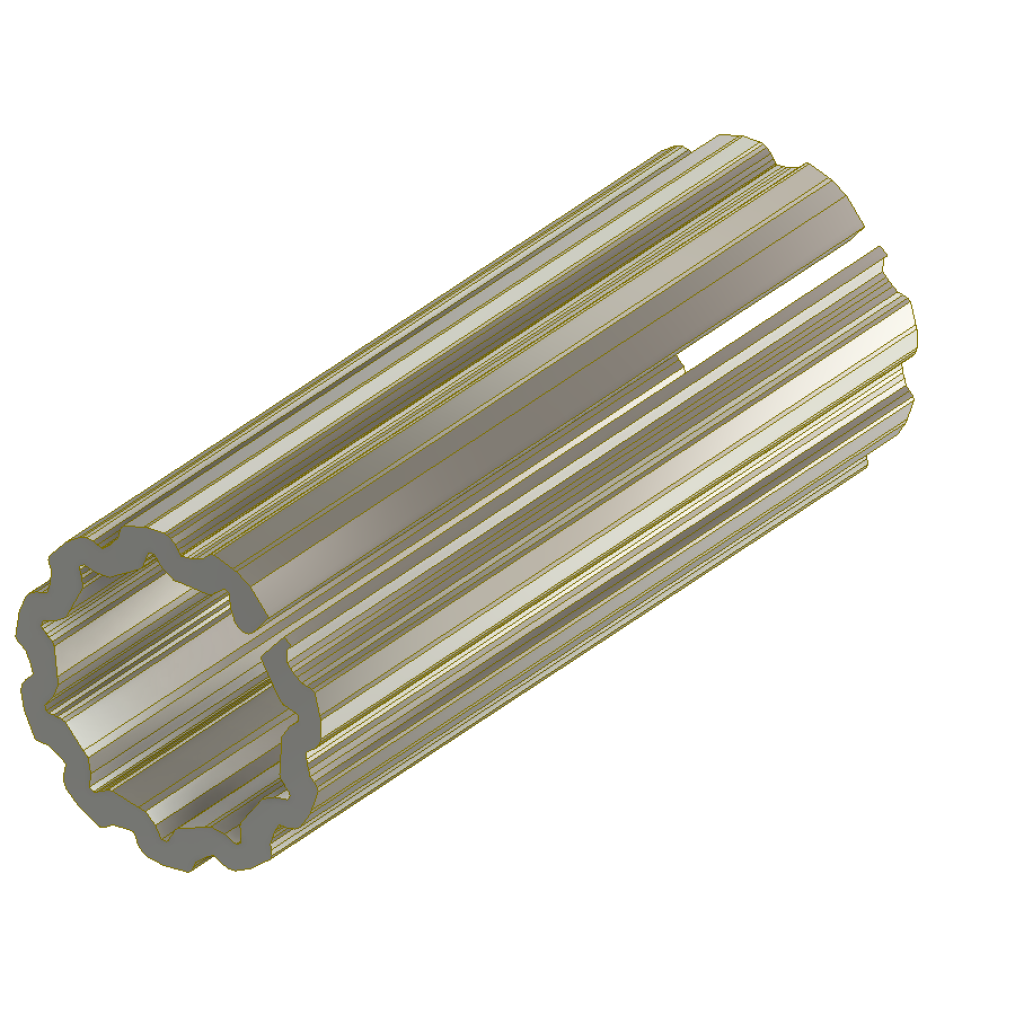

The MAR adapter is used to reduce the cable size of standard compression type connectors. Fabricated of soft, pure copper and hot tin plated for corrosion resistance, the type MAR is designed for use with long double indent connectors. Installation is accomplished by inserting the adapter into the connector barrel, positioning the cable within the adapter, and compressing with standard tooling. For most sizes, the shape of MAR is as illustrated. However some sizes are slightly different.
Product Specifications
Reducing Cable - From
Reducing Cable - To
Catalog Number
L Length
4/0 Str.
6 Str.
MAR 4/0 A6
1-3/4
4/0 Str.
4 Str.
MAR 4/0 A4
1-3/4
4/0 Str.
2 Str.
MAR 4/0 A2
1-3/4
4/0 Str.
1 Str.
MAR 4/0 A1
1-3/4
4/0 Str.
1/0 Str.
MAR 4/0 A1/0
1-3/4
4/0 Str.
2/0 Str.
MAR 4/0 A2/0
1-3/4
4/0 Str.
3/0 Str.
MAR 4/0 A3/0
1-3/4
500 MCM
6 Str.
MAR 500 A6
2-1/2
500 MCM
4 Str.
MAR 500 A4
2-1/2
500 MCM
2 Str.
MAR 500 A2
2-1/2
500 MCM
1 Str.
MAR 500 A1
2-1/2
500 MCM
1/0 Str.
MAR 500 A1/0
2-1/2
500 MCM
2/0 Str.
MAR 500 A2/0
2-1/2
500 MCM
3/0 Str.
MAR 500 A3/0
2-1/2
500 MCM
4/0 Str.
MAR 500 A4/0
2-1/2
500 MCM
250 Str.
MAR 500 A250
2-1/2
500 MCM
300 Str.
MAR 500 A300
2-1/2
500 MCM
350 Str.
MAR 500 A350
2-1/2
500 MCM
400 Str.
MAR 500 A400
2-1/2
