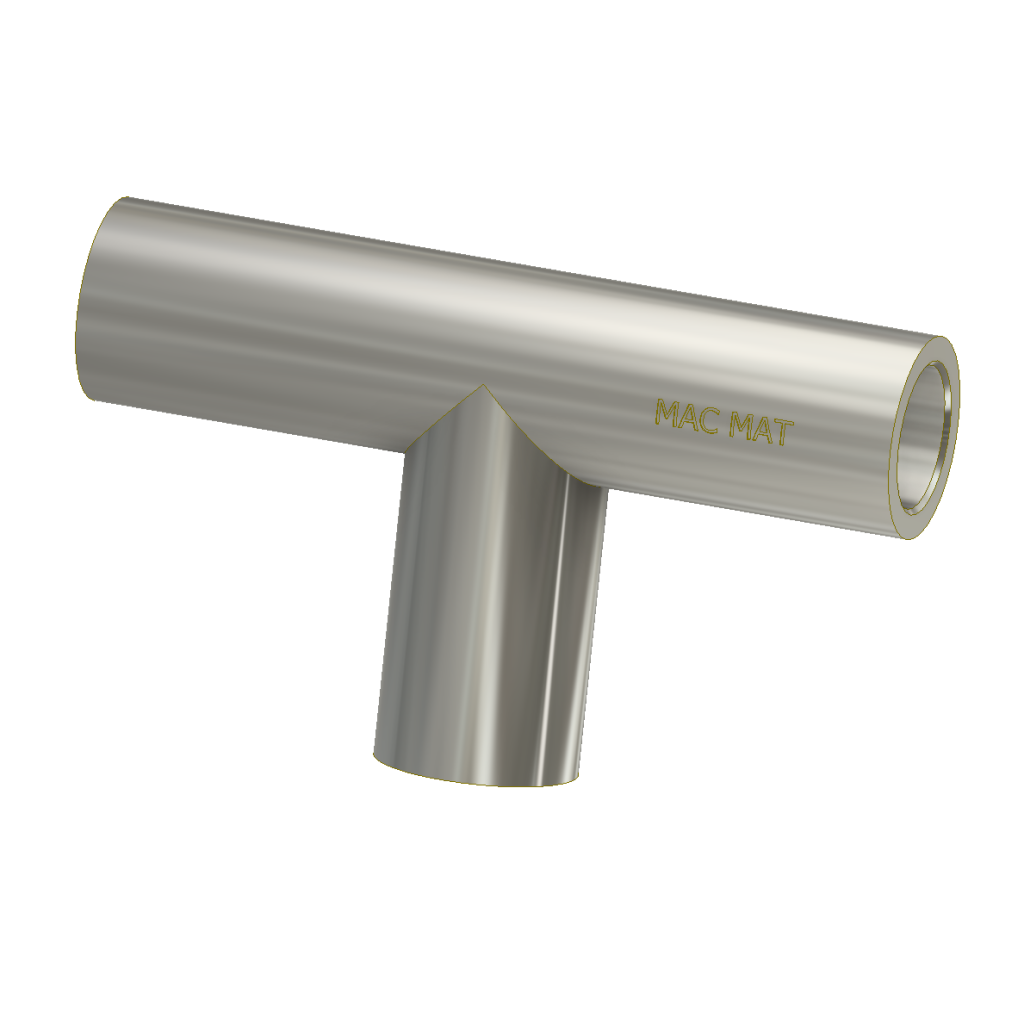

MAT Aluminum Tee Connector 600V
Aluminum TEE Connector for Various Run & Taps
Made of high conductivity aluminum , the type MAT connector is designed for use on secondary network systems. Available for use on combinations of aluminum and copper conductors, installation is accomplished by use of standard compression tooling. Cable sockets are prefilled with MACTEX Inhibitor Compound.
Product Specifications
For custom configurations, please consult the factory.
Catalog Number
Cable Size - Run
Cable Size - Tap
H - Inches
L - Inches
C - Inches
O.D. - Inches
MAT 2/0.2
2/0 Str.
2 Str.
2-9/16
4-5/8
2-1/4
0.687
MAT 2/0.1
2/0 Str.
1 Str.
2-9/16
4-5/8
2-1/4
0.687
MAT 2/0-1/0
2/0 Str.
2/0 Str.
2-11/16
4-3/4
2-5/16
0.687
MAT 2/0-2/0
2/0 Str.
2/0 Str.
2-11/16
4-3/4
2-5/16
0.687
MAT 4/0-1/0
4/0 Str.
1/0 Str.
2-13/16
5
2-7/16
0.85
MAT 4/0-2/0
4/0 Str.
2/0 Str.
2-7/8
5-1/8
2-1/2
0.85
MAT 4/0-4/0
4/0 Str.
4/0 Str.
3-1/16
5-1/4
2-9.16
0.85
MAT 300-1/0
300 MCM
1/0 Str.
3
5-3/8
2-5/8
1.01
MAT 300-2/0
300 MCM
2/0 Str.
3
5-3/8
2-5/8
1.01
MAT 300-4/0
300 MCM
4/0 Str.
3-3/16
5-1/2
2-11/16
1.01
MAT 350-1/0
350 MCM
1/0 Str.
3-1/8
6-1/8
3
1.125
MAT 350-2/0
350 MCM
2/0 Str.
3-1/8
6-1/8
3
1.125
MAT 350-4/0
350 MCM
4/0 Str.
3-5/16
6-1/4
3-1/8
1.125
MAT 350-300
350 MCM
300 MCM
3-3/8
6-3/8
3-3/8
1.125
MAT 350-350
350 MCM
350 MCM
3-13/16
6-5/8
2-11/16
1.125
MAT 500-1/0
500 MCM
1/0 Str.
3-5/16
7-3/8
3-5/8
1.32
MAT 500-2/0
500 MCM
2/0 Str.
3-5/16
7-3/8-
3-5/8
1.32
MAT 500-4/0
500 MCM
4/0 Str.
3-7/16
7-1/2
3-11/16
1.32
MAT 500-300
500 MCM
300 MCM
3-9/16
7-5/8
3-3/4
1.32
MAT 500-350
500 MCM
350 MCM
4
7-3/4
3-13/16
1.32
MAT 500-500
500 MCM
500 MCM
4-9/16
8
3-15/16
1.32
MAT 750-4/0
750 MCM
4/0 Str.
3-3/4
7-1/2
3-11/16
1.5
MAT 750-300
750 MCM
300 MCM
3-7/8
7-5/8
3-3/4
1.5
MAT 750-350
750 MCM
350 MCM
4-5/16
7-3/4
3-13/16
1.5
MAT 750-500
750 MCM
500 MCM
4-13/16
7-7/8
3-7/8
1.5
MAT 750-750
750 MCM
750 MCM
4-7/8
8-1/8
4
1.5
MAT 1000-4/0
1000 MCM
4/0 Str.
4
8-1/4
4-1/16
1.84
MAT 1000-300
1000 MCM
300 MCM
4-1/8
8-3/8
4-1/8-
1.84
MAT 1000-350
1000 MCM
350 MCM
4-9/16
8-1/2
4-3/16
1.84
MAT 1000-500
1000 MCM
500 MCM
5-1/16
8-5/8
4-1/4
1.84
MAT 1000-750
1000 MCM
750 MCM
5-1/8
9-1/4
4-7/16
1.84
MAT 1000-1000
1000 MCM
1000 MCM
5-1/2
9-1/4
4-9/16
1.84
