MATT Aluminum High-Voltage Tee Connector 5KV–35KV
Aluminum H. V. TEE Connector for Various Run & Taps

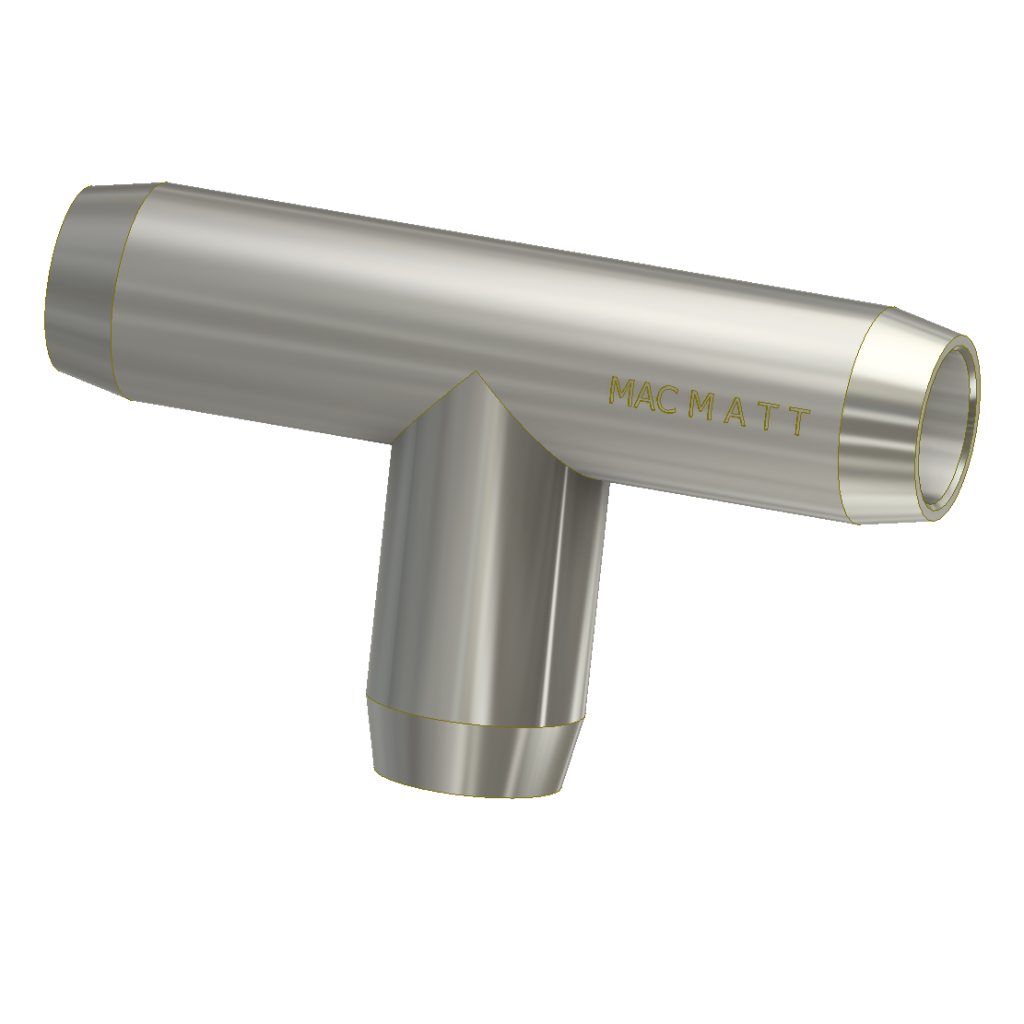

Made of high conductivity aluminum , the type MAT connector is designed for use on connections 5 KV or higher. The tapered ends and smooth contour lines of this connector add to the ease of field insulating. Available for use on combinations of aluminum and copper conductors, installation is accomplished by use of standard compression tooling. Cable sockets are prefilled with MACTEX Inhibitor Compound.
Product Specifications
For custom configurations, please consult the factory.
Catalog Number
Cable Size - Run
Cable Size - Tap
L - Inches
C - Inches
H - Inches
O.D. - Inches
MATT 2-4
2 Str.
4 Str.
5-1/4
2-9/16
2-21/32
0.531
MATT 2-2
2 Str.
2 Str.
5-1/4
2-9/16
2-23/32
0.531
MATT 1/0-2
1/0 Str.
2 Str.
5-1/8
2-1/2
2-25/32
0.593
MATT 1/0-1/0
1/0 Str
1/0
5-1/8
2-1/2
2-25/32
0.593
MATT 2/0-2
2/0
2 Str.
5-3/8
2-5/8
2-7/8
0.687
MATT 2/0-1
2/0
1 Str.
5-3/8
2-5/8
2-3/4
0.687
MATT 2/0-1/0
2/0
1/0
5-1/2
2-11/16
2-7/8
0.687
MATT 2/0-2/0
2/0
2/0
5-1/2
2-11/16
3-1/16
0.687
MATT 4/0-1/0
4/0
1/0
5-7/8
2-7/8
3-1/32
0.85
MATT 4/0-2/0
4/0
2/0
6
2-15/16
3-7/2
0.85
MATT 4/0-4/0
4/0
4/0
6-1/8
3
3-15/32
0.85
MATT 300-1/0
300
1/0
6-5/8
3-1/4
3-3/16
1.01
MATT 300-2/0
300
2/0
6-5/8
3-1/4
3-3/8
1.01
MATT 350-1/0
350
1/0
7-5/8
3-3/4
3-5/16
1.125
MATT 350-2/0
350
2/0
7-5/8
3-3/4
3-1/2
1.125
MATT 350-4/0
350
4/0
7-7/8
3-7/8
3-3/4
1.125
MATT 350-300
350
300
8
3-15/16
4
1.125
MATT 350-350
350
350
8-1/8
4
4-9/16
1.125
MATT 500-1/0
500
1/0
9-1/8
4-1/2
3-1/2
1.32
MATT 500-2/0
500
2/0
9-1/8
4-1/2
3-11/16
1.32
MATT 500-4/0
500
4/0
9-1/4
4-9/16
3-15/16
1.32
MATT 500-300
500
300
9-3/8
4-5/8
4-3/16
1.32
MATT 500-350
500
350
9-1/2
4-11/16
4-3/4
1.32
MATT 500-500
500
500
9-3/4
4-13/16
5-7/16
1.32
MATT 750-4/0
750
4/0
9-3/4
4-13/16
4-3/16
1.5
MATT 750-300
750
300
9-7/8
4-7/8
4-7/16
1.5
MATT 750-350
750
350
10
4-15/16
5
1.5
MATT 750-500
750
500
10-1/8
5
5-5/8
1.5
MATT 750-750
750
750
10-3/8
5-1/8
6
1.5
MATT 1000-4/0
1000
4/0
10-7/8
5-3/8
4-7/16
1.84
MATT 1000-300
1000
300
11
5-7/16
4-11/16
1.84
MATT 1000-350
1000
350
11-1/8
5-1/2
5-1/4
1.84
MATT 1000-500
1000
500
11-1/4
5-9/16
5-15/16
1.84
MATT 1000-750
1000
750
11-5/8
5-3/4
6-1/4
1.84
MATT 1000-1000
1000
1000
10-7/8
5-7/8
6-13/16
1.84
