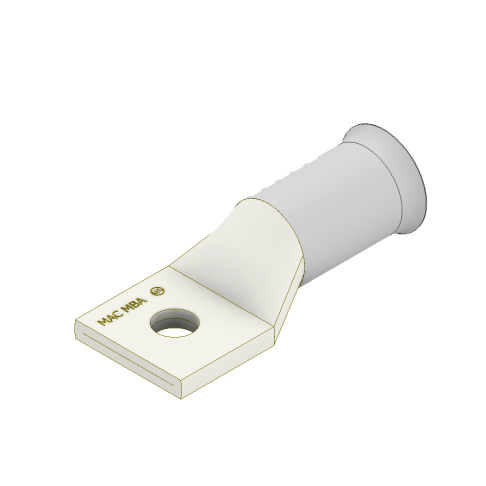

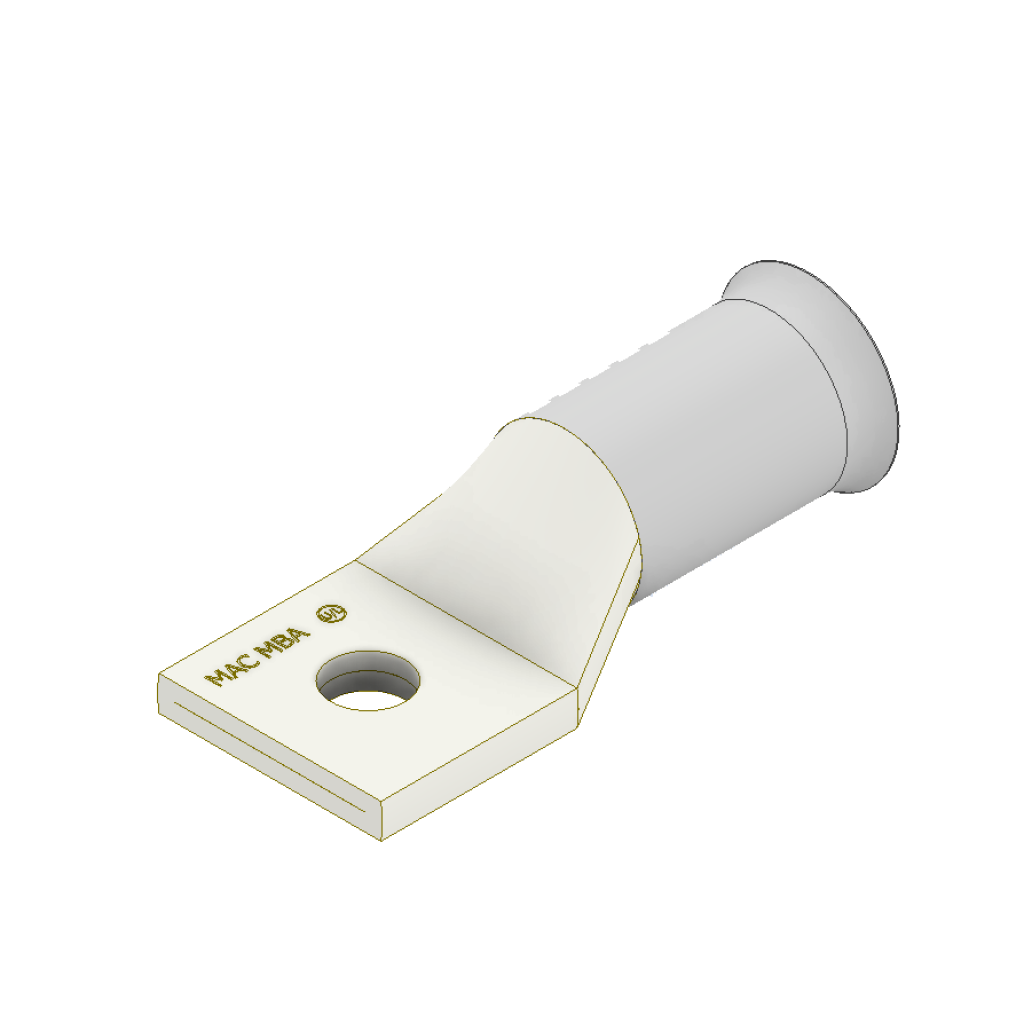

MBA Copper 1-Hole Flared Compression Lug
Heavy Duty Flared Copper Compression Lug with a One Hole Mounting Pad
Type MBA is similar to types MRA and MRB with the added feature of a belled barrel for easier insertion of flexible cables.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size
Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
Y - Inches
T - Inches
D - Inches
1/0 Str.
3/8
MBA 1/0-6
2-11/16
1-3/8
7/8
3/4
7/116
1/8
7/16
2/0 Str.
3/8
MBA 2/0-6
2-13/16
1-1/2
7/8
13/16
7/16
1/8
7/16
3/0 Str.
3/8
MBA 3/0-6
3-3/16
1-1/2
1-1/8
29/32
9/16
1/8
7/16
4/0 Str.
3/8
MBA 4/0-6
3-1/4
1-5/8
1-1/8
1
9/16
9/64
7/16
250 MCM
3/8
MBA 250-6
3-5/16
1-5/8
1-1/8
1-3/32
9/16
5/32
7/16
250 MCM
1/2
MBA 250-6
3-5/16
1-5/8
1-1/8
1-3/32
9/16
5/32
9/16
300 MCM
1/2
MBA 300-6
3-11/16
2
1-1/8
1-3/16
9/16
5/32
9/16
350 MCM
1/2
MBA 350-6
3-23/32
2
-1-1/8
1-9/32
9/16
11/64
9/16
400 MCM
1/2
MBA 400-6
4
2-1/8
1-1/4
1-13/32
5/8
3/16
9/16
500 MCM
1/2
MBA 500-6
4-7/16
2-1/4
1-1/2
1-17/32
3/4
15/64
9/16
600 MCM
1/2
MBA 600-6
5-3/16
2-11/16
1-3/4
1-23/32
7/8
17/64
9/16
750 MCM
1/2
MBA 750-6
5-3/4
2-7/8
1-7/8
1-29/32
7/8
9/32
9/16
