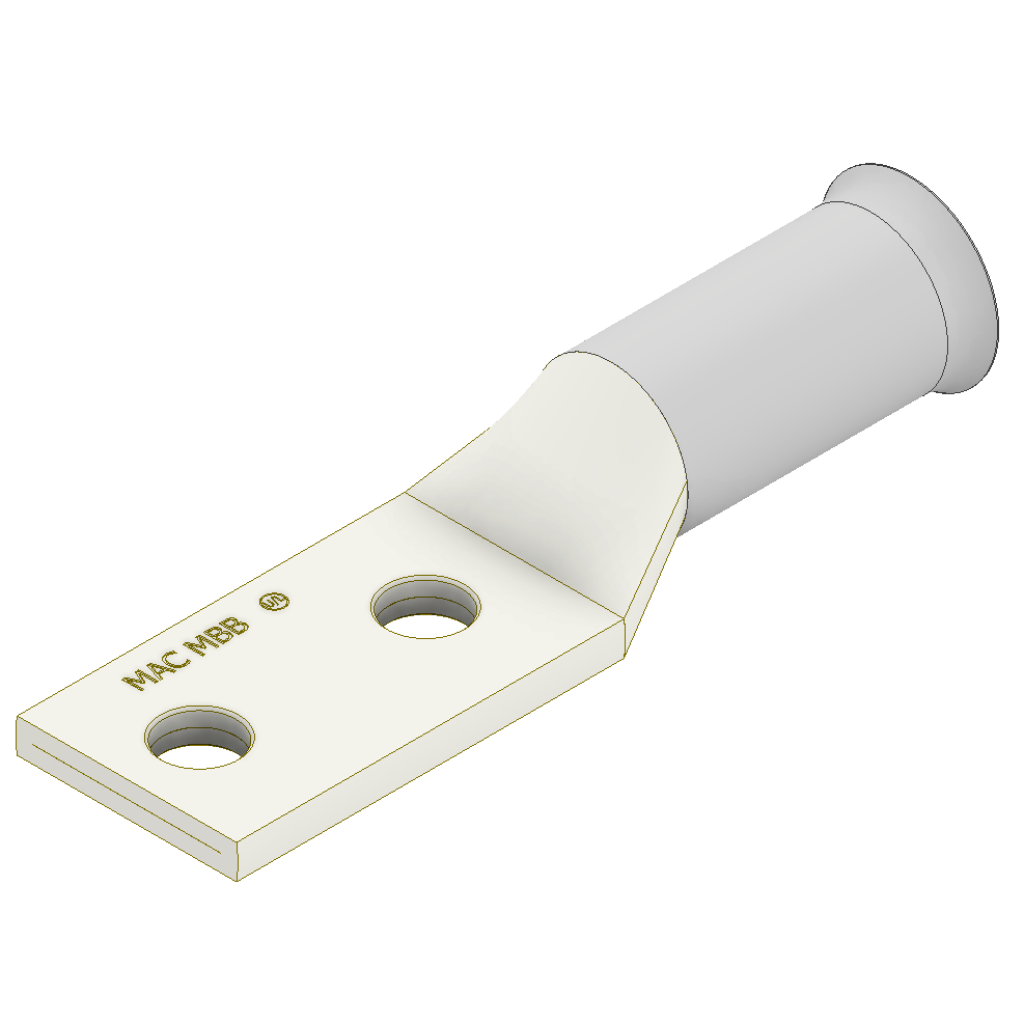

MBB 2-Hole Flared Compression Lug
Heavy Duty Flared Copper Compression Lug with a Two Hole Mounting Pad
Type MBB is similar to types MRA and MRB with the added feature of a belled barrel for easier insertion of flexible cables.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size
Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
Y - Inches
X - Inches
T - Inches
D - Inches
1/0 Str.
3/8
MBB 1/0-6
3-13/16
1-3/8
2
3/4
7/16
1
1/8
7/16
1/0 Str.
1/2
MBB 1/0-8N
4-15/16
1-3/8
3-1/8
13/16
9/16
1-3/4
1/8
9/16
2/0 Str.
3/8
MBB 2/0-6
3-15/16
1-1/2
2
13/16
7/16
1
1/8
7/16
2/0 Str.
1/2
MBB 2/0-8N
5-1/16
1-1/2
3-1/8
13/16
9/16
1-3/4
1/8
9/16
3/0 Str.
3/8
MBB 3/0-6
4
1-1/2
2
29/32
7/16
1
1/8
7/16
3/0 Str.
1/2
MBB 3/0-8N
5-1/8
1-1/2
3-1/8
29/32
9/16
1-3/4
1/8
9/16
4/0 Str.
3/8
MBB 4/0-6
4-3/16
1-5/8
2
1
3/8
1-1/16
9/64
7/16
4/0 Str.
1/2
MBB 4/0-8N
5-1/4
1-5/8
3-1/8
1
9/16
1-3/4
9/64
9/16
250 MCM
3/8
MBB 250-6
4-3/8
1-5/8
2
1-3/32
3/8
1-1/16
5/32
7/16
250 MCM
1/2
MBB 250-8
4-7/16
1-5/8
2-1/4
1-3/32
5/8
1
5/32
9/16
250 MCM
1/2
MBB 250-8N
5-5/16
1-5/8
3-1/8
1-3/32
9/16
1-3/4
5/32
9/16
300 MCM
3/8
MBB 300-6
4-9/16
2
2
1-3/16
7/16
1
5/32
7/16
300 MCM
1/2
MBB 300-8
4-13/16
2
2-1/4
1-3/16
5/8
1
5/32
9/16
300 MCM
1/2
MBB 300-8N
5-13/16
2
3-1/4
1-3/16
9/16
1-3/4
5/32
9/16
350 MCM
3/8
MBB 350-6
4-19/32
2
2
1-9/32
7/16
1
11/64
7/16
350 MCM
1/2
MBB 350-8
4-27/32
2
2-1/4
1-9/32
5/8
1
11/64
9/16
350 MCM
1/2
MBB 350-8N
5-27/32
2
3-1/4
1-9/32
9/16
1-3/4
11/64
9/16
400 MCM
3/8
MBB 400-6
4-3/4
2-1/8
2
1-13/32
7/16
1
3/16
7/16
400 MCM
1/2
MBB 400-8
5
2-1/8
2-1/4
1-13/32
5/8
1
3/16
9/16
400 MCM
1/2
MBB 400-8N
6
2-1/8
3-1/4
1-13/32
9/16
1-3/4
3/16
9/16
500 MCM
3/8
MBB 500-6
5-3/16
2-1/4
2-1/4
1-17/32
5/8
1
15/64
7/16
500 MCM
1/2
MBB 500-8
5-3/16
2-1/4
2-1/4
1-17/32
5/8
1
15/64
9/16
500 MCM
1/2
MBB 500-8N
6-1/16
2-1/4
3-1/4
1-17/32
9/16
1-3/4
15/64
9/16
600 MCM
3/8
MBB 600-6
5-11/16
2-11/16
2-1/4
1-23/32
7/17
1
17/64
7/16
600 MCM
1/2
MBB 600-8
5-11/16
2-11/16
2-1/4
1-23/32
5/8
1
17/64
9/16
600 MCM
1/2
MBB 600-8N
6-7/16
2-11/16
3
1-23/32
9/16
1-3/4
17/64
9/16
750 MCM
3/8
MBB 750-6
6-1/8
2-7/8
2-1/4
1-29/32
7/16
1
9/32
7/16
750 MCM
1/2
MBB 750-8
6-1/8
2-7/8
2-1/4
1-29/32
5/8
1
9/32
9/16
750 MCM
1/2
MBB 750-8N
6-7/8
2-7/8
3
1-29/32
9/16
1-3/4
9/32
9/16
