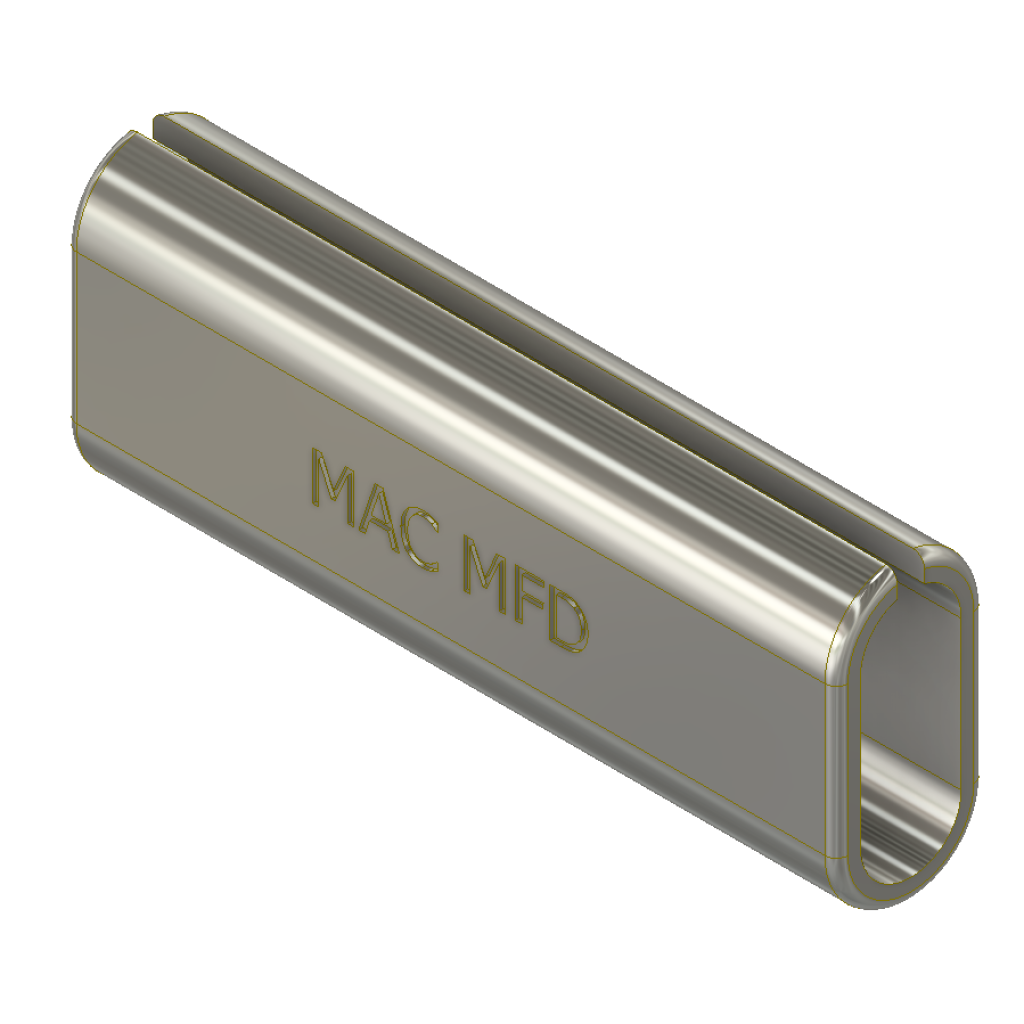

MFD Duplex Solder Connector
Full Duplex Solder Connector
Type MFD may be used for solder connections of either two or four cables of equal size. Fabricated of pure copper and hot tin plated, these connectors are in accordance with EEI specifications. Cable size combinations other than those shown are readily available.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Catalog Number
D - Inches
L - Inches
S - Inches
6 Str.
MFD 6
0.378
1-1/2
.050
4 Str.
MFD 4
0.474
2
.070
3 Str.
MFD 3
0.53
2
0.70
2 Str.
MFD 2
0.594
2
.070
1 Str.
MFD 1
0.647
2
.070
1/0 Str.
MFD 1/0
0.756
2-1/2
.070
2/0 Str.
MFD 2/0
0.846
2-1/2
.120
3/0 Str.
MFD 3/0
0.95
2-1/2
.120
4/0 Str.
MFD 4/0
1.066
2-1/2
.120
250 MCM
MFD 250
1.162
2-1/2
.120
300 MCM
MFD 300
1.27
2-1/2
.120
350 MCM
MFD 350
1.38
2-1/2
.120
400 MCM
MFD 400
1.48
3
.150
450 MCM
MFD 450
1.568
3
.150
500 MCM
MFD 500
1.652
3
.150
550 MCM
MFD 550
1.736
3
.175
600 MCM
MFD 600
1.812
3
.175
