MHD Half Duplex Solder Connector
Half Duplex Solder Connector

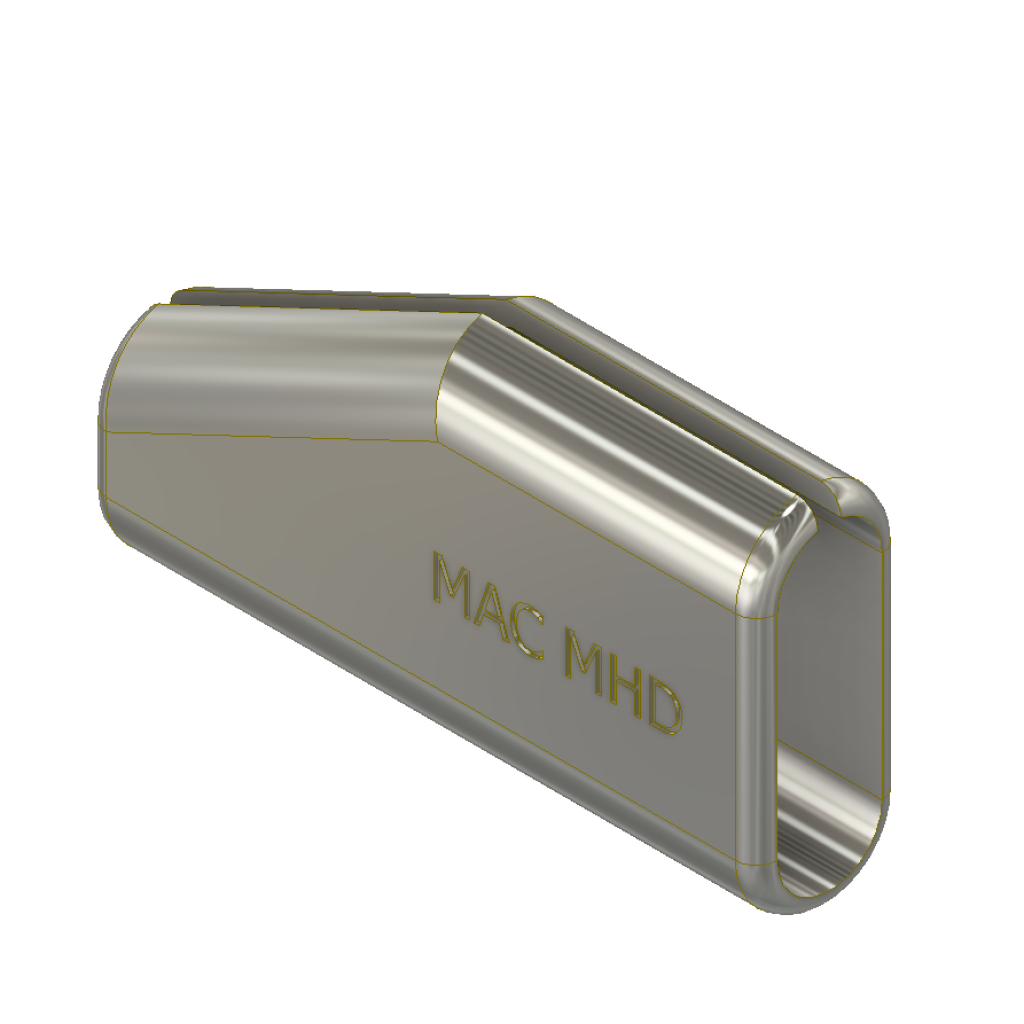

MAC Type MHD, half duplex split tinned connectors, are produced in accordance with E.E.I. specifications. Fabricated of pure copper and hot tin coated, these solder connectors may be used to join two or three cables. Sizes shown below are for equal size cables. Other cable size combinations are readily available.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Catalog Number
D - Inches
B - Inches
C - Inches
L - Inches
S - Inches
6 Str.
MHD 6
0.378
3/4
0.189
1-1/2
0.05
4 Str.
MHD 4
0.474
1
0.237
2
0.07
3 Str.
MHD 3
0.53
1
0.265
2
0.07
2 Str.
MHD 2
0.544
1
0.297
2
0.07
1 Str.
MHD 1
0.674
1
0.337
2
0.07
1/0 Str.
MHD 1/0
0.756
1
0.378
2
0.07
2/0 Str.
MHD 2/0
0.846
1
0.423
2
0.07
3/0 Str.
MHD 3/0
0.95
1
0.475
2
0.07
4/0 Str.
MHD 4/0
1.066
1-1/4
0.533
2-1/2
0.12
250 MCM
MHD 250
1.162
1-1/4
0.581
2-1/2
0.12
300 MCM
MHD 300
1.27
1-1/4
0.635
2-1/2
0.12
350 MCM
MHD 350
1.38
1-1/4
0.69
2-1/2
0.12
400 MCM
MHD 400
1.48
1-1/2
0.74
3
0.175
450 MCM
MHD 450
1.568
1-1/2
0.784
3
0.175
500 MCM
MHD 500
1.652
1-1/2
0.826
3
0.175
550 MCM
MHD 550
1.736
1-1/2
0.868
3
0.175
600 MCM
MHD 600
1.812
1-3/4
0.906
3-1/2
0.175
650 MCM
MHD 650
1.896
1-3/4
0.948
3-1/2
0.175
750 MCM
MHD 750
2.036
1-3/4
1.018
3-1/2
0.22
800 MCM
MHD 800
2.104
2
1.052
4
0.22
850 MCM
MHD 850
2.166
2
1.083
4
0.22
