MLA Aluminum 1-Hole Compression Lug
Aluminum Compression Lug with a One Hole Mounting Pad

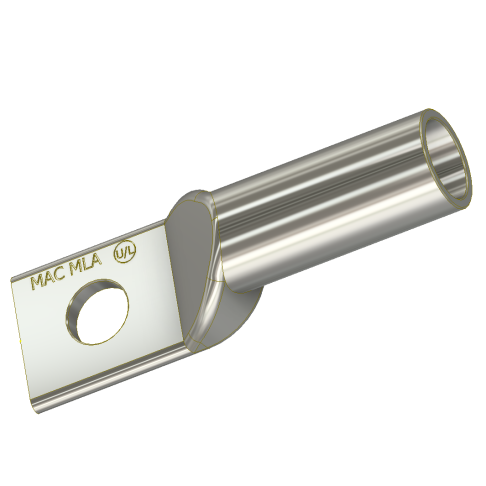

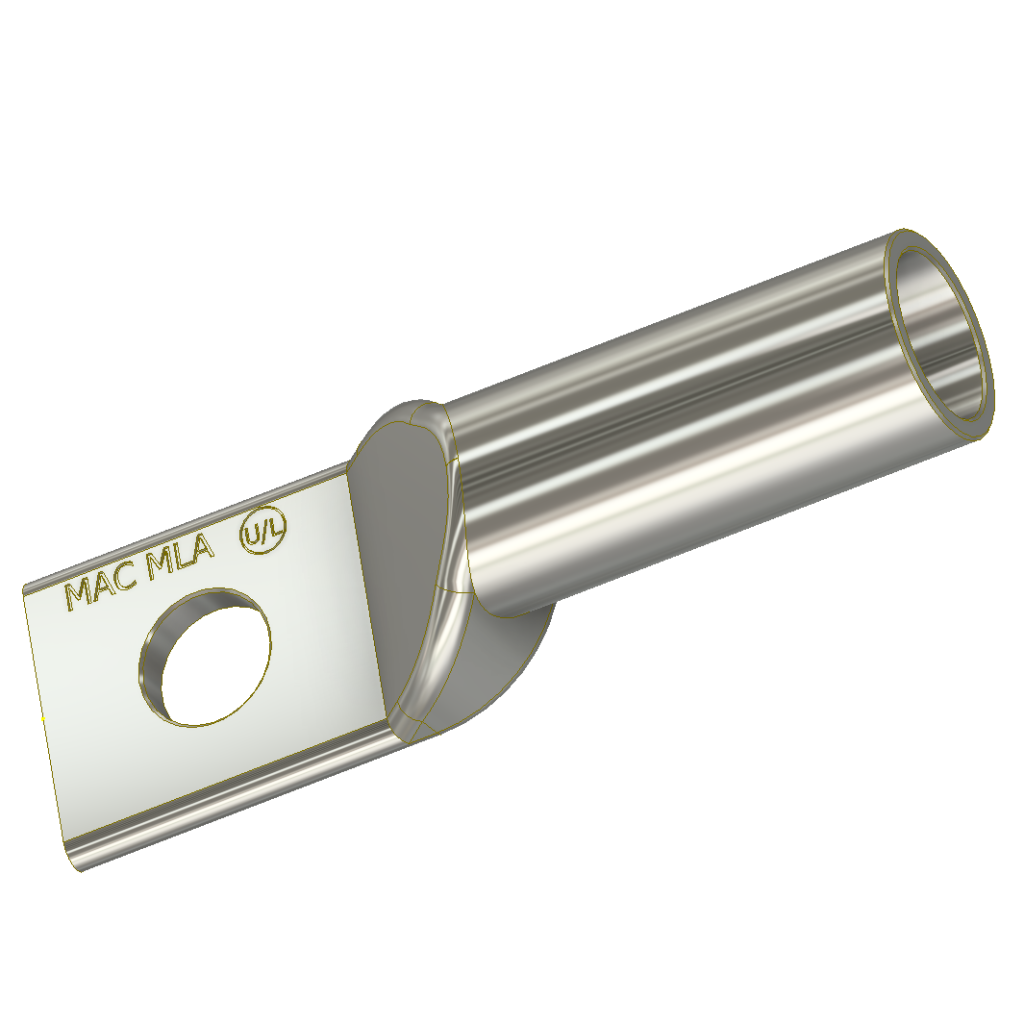

Type MLA aluminum compression terminal lug with one hole mounting pad is available in cable sizes from #1 to 2000mcm. Fabricated from seamless aluminum tubing and tin plated for added resistance to corrosion. These terminals are supplied with factory filled MACTEX Inhibiting Compound. Tyle MLA may be used for terminating cable to either a copper or aluminum surface.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size
Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
Y - Inches
T - Inches
6 Str.
1/4
MLA 6-4
1-11/16
3/4
5/8
5/8
5/16
3/32
6 Str.
3/8
MLA 6-6
2-1/32
3/4
31/32
5/8
15/32
3/32
4 Str.
1/4
MLA 4-4
2-1/8
1
3/4
13/16
3/8
1/8
4 Str.
5/16
MLA 4-5
2-1/4
1
7/8
13/16
7/16
1/8
4 Str.
3/8
MLA 4-6
2-11/32
1
31/32
13/16
15/32
1/8
2 Str.
5/16
MLA 2-5
2-1/2
1-1/8
7/8
7/8
7/16
5/32
2 Str.
3/8
MLA 2-6
2-19/32
1-1/8
31/32
7/8
15/32
5/32
1 Str.
5/16
MLA 1-5
2-1/2
1-1/8
7/8
29/32
7/16
5/32
1 Str.
3/8
MLA 1-6
2-3/4
1-1/8
31/32
29/32
15/32
5/32
1/0 Str.
5/16
MLA 1/0-5
2-9/16
1-3/16
7/8
29/32
7-1/6
1/4
1/0 Str.
3/8
MLA 1/0-6
2-13/16
1-3/16
1-1/8
29/32
15/32
1/4
1/0 Str.
1/2
MLA 1/0-8
3-1/32
1-3/16
7/8
29/32
5/8
1/4
2/0 Str.
3/8
MLA 2/0-6
3
1-1/4
1-1/8
1-1/32
15/32
1/4
2/0 Str.
1/2
MLA 2/0-8
3-7/32
1-1/4
1-11/32
1-1/32
5/8
1/4
3/0 Str.
3/8
MLA 3/0-6
3-1/32
1-1/4
1-1/8
1-1/16
15/32
1/4
3/0 Str.
1/2
MLA 3/0-8
3-1/4
1-1/4
1-11/32
1-1/16
5/8
1/4
4/0 Str.
3/8
MLA 4/0-6
3-1/8
1-7/16
1-1/8
1-3/16
15/32
5/16
4/0 Str.
1/2
MLA 4/0-8
3-1/2
1-7/16
1-3/8
1-3/16
5/8
5/16
250 MCM
3/8
MLA 250-6
3-9/32
1-7/16
1-1/8
1-9/32
15/32
5/16
250 MCM
1/2
MLA 250-8
3-17/32
1-7/16
1-3/8
1-9/32
5/8
5/16
300 MCM
3/8
MLA 300-6
3-15/32
1-9/16
1-1/8
1-13/32
15/32
3/8
300 MCM
1/2
MLA 300-8
3-23/32
1-9/16
1-3/8
1-13/32
5/8
3/8
350 MCM
1/2
MLA 350-8
4-7/32
1-31/32
1-1/8
1-1/2
5/8
3/8
400 MCM
1/2
MLA 400-8
4-23/32
2-11/32
1-3/8
1-21/32
5/8
7/16
400 MCM
5/8
MLA 400-9
5-5/32
2-11/32
1-3/8
1-21/32
7/8
7/16
500 MCM
1/2
MLA 500-8
4-15/16
2-1/2
1-3/8
1-13/16
5/8
7/16
500 MCM
5/8
MLA 500-9
5-3/8
2-1/2
1-13/16
1-13/16
7/8
7/16
600 MCM
1/2
MLA 600-8
5
2-1/2
1-3/8
2
5/8
9/16
600 MCM
5/8
MLA 600-9
5-7/16
2-1/2
1-13/16
2
7/8
9/16
750 MCM
1/2
MLA 750-8
5-3/16
2-9/16
1-3/8
2-1/16
5/8
9/16
750 MCM
5/8
MLA 750-9
5-5/8
2-9/16
1-13/16
2-1/16
7/8
9/16
800 MCM
5/8
MLA 800-9
5-3/4
2-11/16
1-13/16
2-1/4
7/8
5/8
1000 MCM
5/8
MLA 1000-9
6-1/16
2-15/16
1-13/16
2-1/2
7/8
11/16
