MLB-Stacker Top Aluminum Offset Stacking Lug

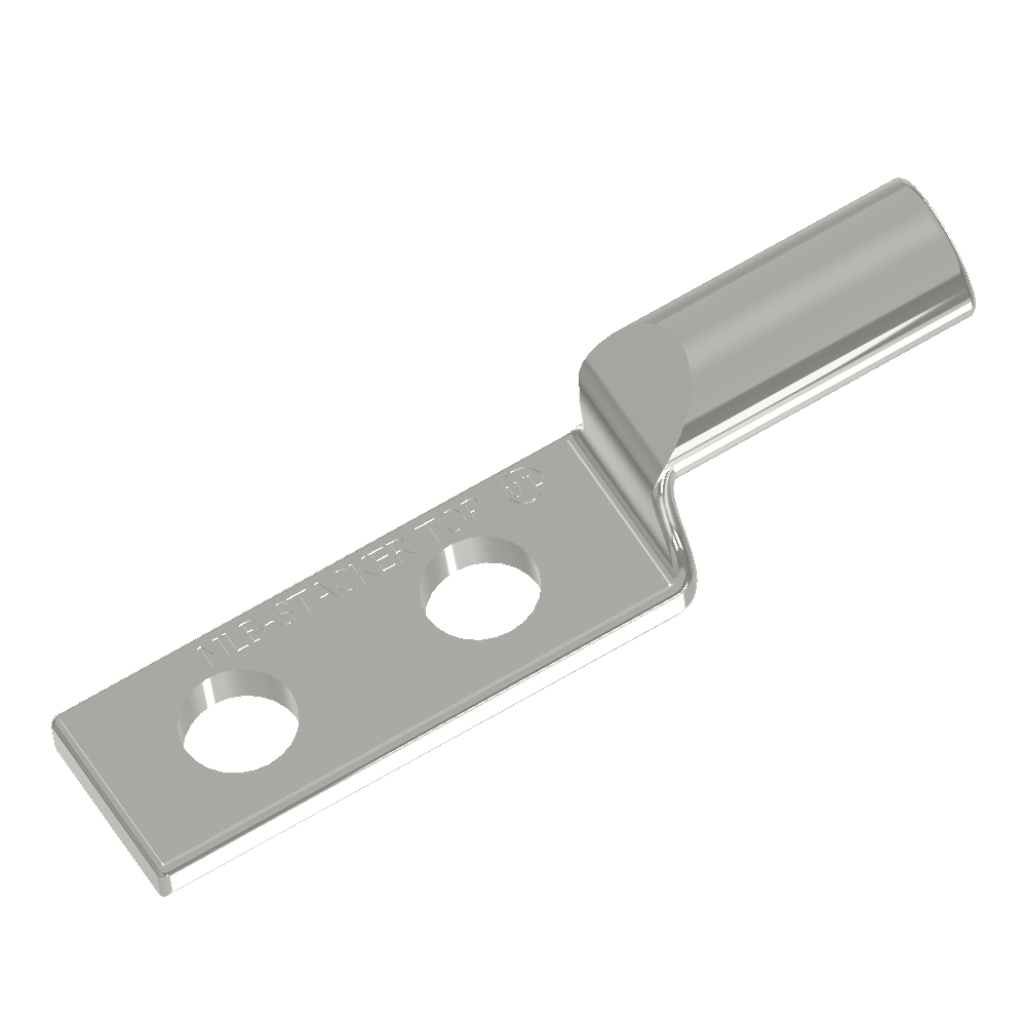

Heavy Duty Aluminum Stacker Type Compression Lug with a Two Hole Mounting Pad
Made of high conductivity aluminum tubing and prefilled with MACTEX Inhibitor, the MLB offset stacking lug is designed to allow the termination of two conductors to one point when used in conjunction with a matching MLB-8N lug. Installed with compression tooling. The MLB top and bottom may be ordered as a set.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size

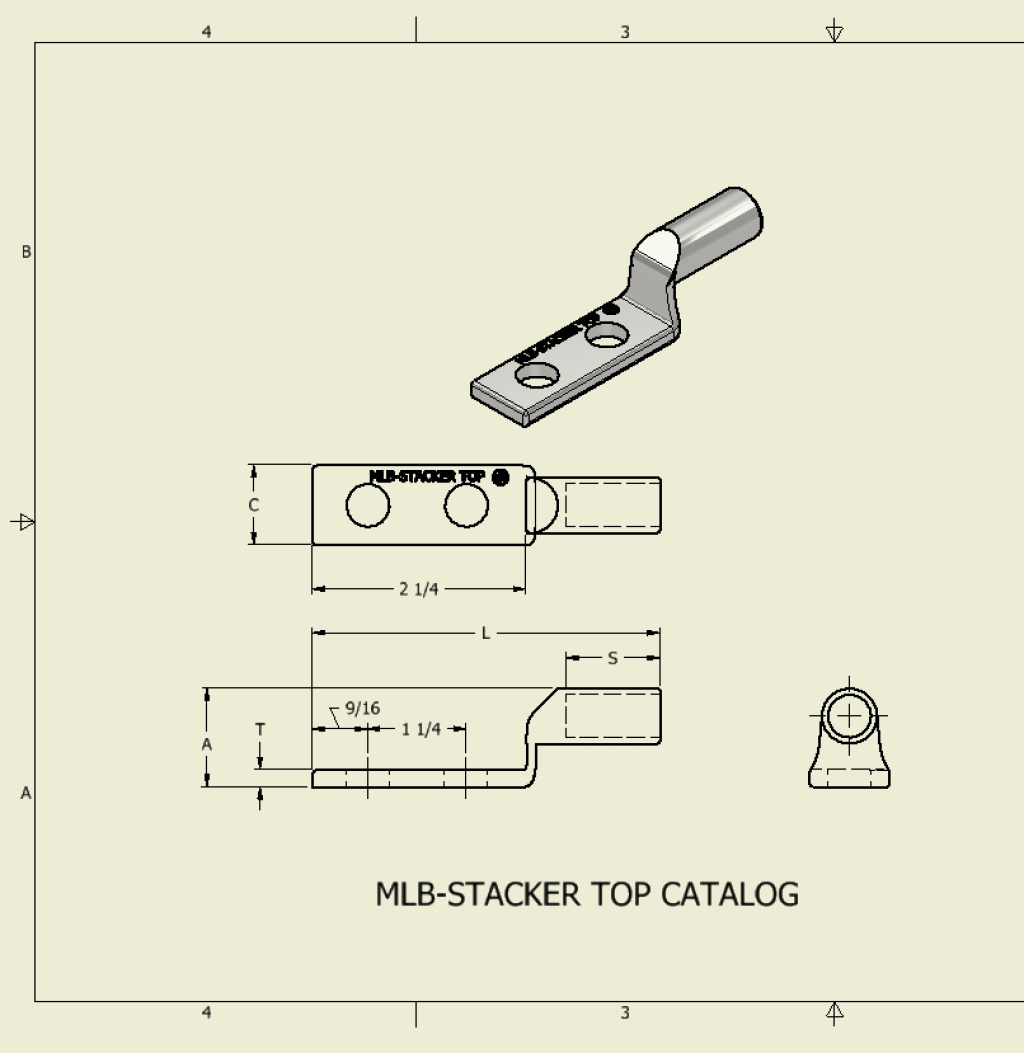

Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
X - Inches
Y - Inches
T - Inches
6 Str
3/8
MLB 6-6
2-31/32
3/4
1-29/32
5/8
1
15/32
3/32
6 Str.
3/8
MLB 6-6N
4-1/32
3/4
2-31/32
5/8
1-3/4
5/8
3/32
4 Str.
3/8
MLB 4-6
3-9/32
1
1-29/32
13/16
1
15/32
1/8
4 Str.
3/8
MLB 4-6N
4-11/32
1
2-31/32
13/16
1-3/4
5/8
1/8
2 Str.
3/8
MLB 2-6
3-17/32
1-1/8
1-29/32
7/8
1
15/32
5/32
2 Str.
3/8
MLB 2-6N
4-19/32
1-1/8
2-31/32
7/8
1-3/4
5/8
5/32
2 Str.
1/2
MLB 2-8N
5-1/8
1-1/8
3-1/2
7/8
1-3/4
5/8
5/32
1 Str.
3/8
MLB1-6
3-17/32
1-1/8
1-29/32
29/32
1
15/32
5/32
1 Str.
3/8
MLB1-6N
4-19/32
1-1/8
2-31/32
29/32
1-3/4
5/8
5/32
1 Str.
1/2
MLB 1-8N
5-1/8
1-1/8
3-1/2
29/32
1-3/4
5/8
5/32
1/0 Str.
3/8
MLB 1/0-6
3-19/32
1-3/16
1-29/32-
29/32
1
15/32
1/4
1/0 Str.
3/8
MLB 1/0-6N
4-21/32
1-3/16
2-31/32
29/32
1-3/4
5/8
1/4
1/0 Str.
1/2
MLB 1/0-8N
5-3/16
1-3/16
3-1/2
29/32
1-3/4
5/8
1/4
2/0 Str.
3/8
MLB 2/0-6
3-25/32
1-1/4
1-29/32
1-1/32
1
15/32
1/4
2/0 Str.
3/8
MLB 2/0-6N
4-27/32
1-1/4
2-31/32
1-1/32
1-3/4
5/8
1/4
2/0 Str.
1/2
MLB 2/0-8N
5-3/8
1-1/4
3-1/2
1-1/32
1-3/4
5/8
1/4
3/0 Str.
3/8
MLB 3/0-6
3-25/32
1-1/4
1-29/32
1-1/16
1
15/32
1/4
3/0 Str.
3/8
MLB 3/0-6N
4-27/32
1-1/4
2-31/32
1-1/16
1-3/4
5/8
1/4
3/0 Str.
1/2
MLB 3/0-8N
5-3/8
1-1/4
3-1/2
1-1/16
1-3/4
5/8
1/4
4/0 Str.
3/8
MLB 4/0-6
4-1/32
1-7/16
1-29/32
1-3/16
1
15/32
5/16
4/0 Str.
3/8
MLB 4/0-6N
5-3/32
1-7/16
2-31/32
1-3/16
1-3/4
5/8
5/16
4/0 Str.
1/2
MLB 4/0-8N
5-5/8
1-7/16
3-1/2
1-3/16
1-3/4
5/8
5/16
250 MCM
3/8
MLB 250-6
4-1/16
1-716
1-29/32
1-9/32
1
15/32
5/16
250 MCM
3/8
MLB 250-6N
5-1/8
1-7/16
2-31/32
1-9/32
1-3/4
5/8
5/16
250 MCM
2/12
MLB 250-8N
5-21/32
1-7/16
3-1/2
1-9/32
1-3/4
5/8
5/16
300 MCM
3/8
MLB 300-6
4-1/4
1-9/16
1-29/32
1-13/32
1
15/32
3/8
300 MCM
3/8
MLB 300-6N
5-5/16
1-9/16
2-31/32
1-13/32
1-3/4
5/8
3/8
300 MCM
1/2
MLB 300-8N
5-27/32
1-9/16
3-1/2
1-13/32
1-3/4
5/8
3/8
350 MCM
3/8
MLB 350-6
4-3/4
1-31/32
1-29/32
1-1/2
1
15/32
3/8
350 MCM
3/8
MLB 350-6N
5-13/16
1-31/32
2-31/32
1-1/2
1-3/4
5/8
3/8
350 MCM
1/2
MLB 350-8N
6-11/32
1-31/32
3-1/2
1-1/2
1-3/4
5/8
3/8
400 MCM
3/8
MLB 400-6
5-1/4
2-11/32
1-29/32
1-21/32
1
15/32
7/16
400 MCM
3/8
MLB 400-6N
6-5/16
2-11/32
2-31/32
1-21/32
1-3/4
5/8
7/16
400 MCM
1/2
MLB 400-8N
6-27/32
2-11/32
3-1/2
1-21/32
1-3/4
5/7
7/16
400 MCM
5/8
MLB 400-9N
6-27/32
2-11/32
3-1/2
1-21/32
1-3/4
7/8
7/16
500 MCM
3/8
MLB 500-6
5-15/32
2-1/2
1-29/32
1-13/16
1
15/32
7/16
500 MCM
3/8
MLB 500-6N
6-17/32
2-1/2
2-31/32
1-13/16
1-3/4
5/8
7/16
500 MCM
1/2
MLB 500-8N
7-1/16
2-1/2
3-1/2
1-13/16
1-3/4
5/8
7/16
500 MCM
5/8
MLB 500-9N
7-1/16
2-1/2
3-1/2
1-13/16
1-3/4
7/8
7/16
600 MCM
3/8
MLB 600-6
5-17/32
2-1/2
1-29/32
2
1
15/32
9/16
600 MCM
3/8
MLB 600-6N
6-19/32
2-1/2
2-31/32
2
1-3/4
5/8
9/16
600 MCM
1/2
MLB 600-8N
7-1/8
2-1/2
3-1/2
2
1-3/4
5/8
9/16
600 MCM
5/8
MLB 600-9N
7-1/8
2-1/2
3-1/2
2
1-3/4
7/8
9/16
750 MCM
3/8
MLB 750-6
5-23/32
2-9/16
1-29/32
2-1/16
1
15/32
9/16
750 MCM
1/2
MLB 750-8N
7-5/16
2-9/16
3-1/2
2-1/16
1-3/4
5/8
9/16
750 MCM
5/8
MLB 750-9N
7-5/16
2-9/16
3-1/2
2-1/16
1-3/4
7/8
9/16
800 MCM
1/2
MLB 800-8N
7-1/2
2-11/16
3-9/16
2-1/4
1-3/4
5/8
5/8
800 MCM
5/8
MLB 800-9N
7-1/2
2-11/16
3-91/6
2-1/4
1-3/4
7/8
5/8
1000 MCM
1/2
MLB 1000-8N
7-7/8
2-15/16
3-5/8
2-1/2
1-3/4
5/8
11/16
1000 MCM
5/8
MLB 1000-9N
7-7/8
2-15/16
3-5/8
2-1/2
1-3/4
7/8
11/16
1250 MCM
1/2
MLB 1250-8N
8-1/8
2-15/16
3-11/16
2-19/32
1-3/4
5/8
3/4
1250 MCM
5/8
MLB 1250-9N
8-1/8
2-15/16
3-11/16
2-19/32
1-3/4
7/8
3/4
1500 MCM
1/2
MLB 1500-8N
9
3-1/2
3-3/4
3-1/16
1-3/4
5/8
13/16
1500 MCM
5/8
MLB 1500-9N
9
3-1/2
3-3/4
3-1/16
1-3/4
7/8
13/16
1750 MCM
1/2
MLB 1750-8N
9--1/4
3-9/16
3-13/16
3-3/8
1-3/4
5/8
7/8
1750 MCM
5/8
MLB 1750-9N
9-1/4
3-9/16
3-13/16
3-3/8
1-3/4
7/8
7/8
2000 MCM
1/2
MLB 2000-8N
9-9/16
3-11/16
3-7/8
3-1/2
1-3/4
5/8
15/16
2000 MCM
5/8
MLB 2000-9N
9-/916
3-11/16
3-7/8
3-1/2
1-3/4
7/8
15/16
For custom configurations, please consult the factory.
