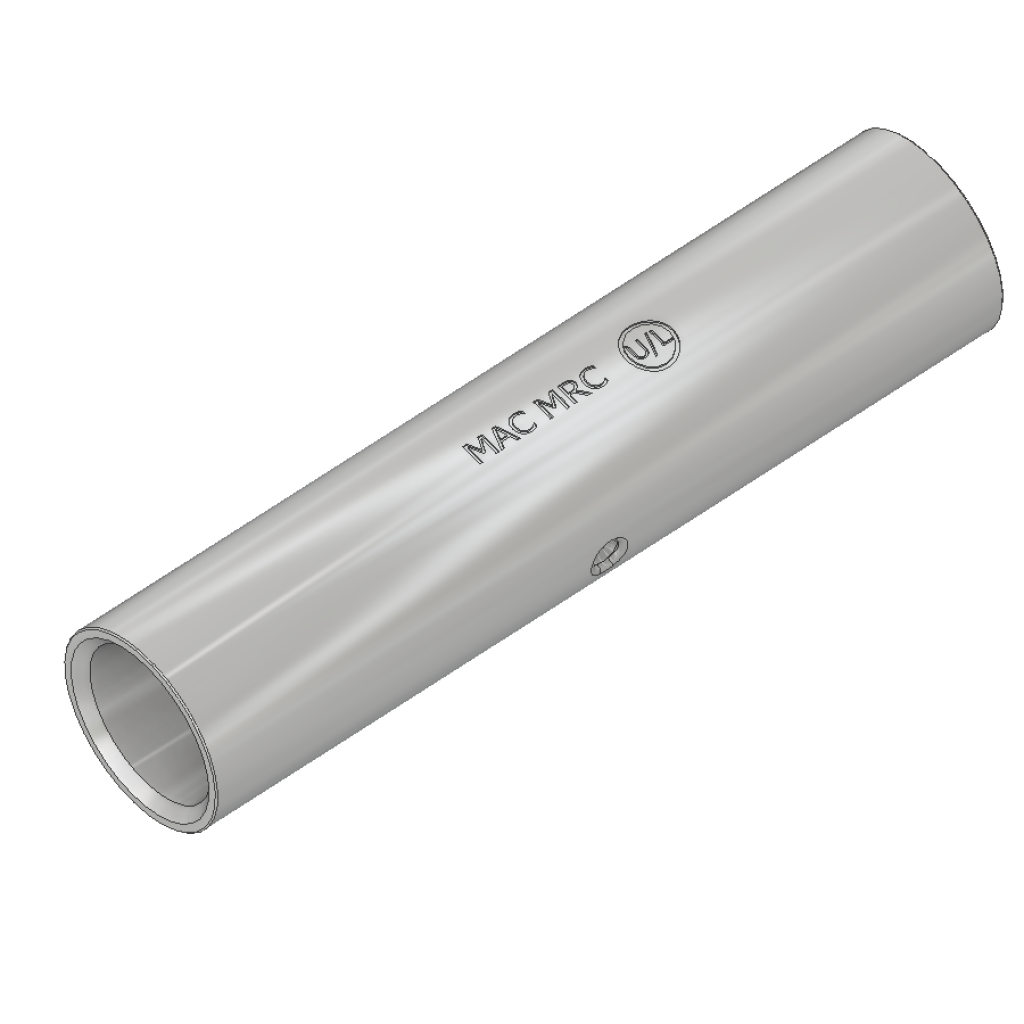

MRC Copper Compression Coupler 600V
Heavy Duty Copper Compression Coupler
The type MRC long barrel copper coupler is produced in a wide range of cable sizes from #1 Str. to 2000 MCM. Fabricated of pure, seamless copper tubing and tin plated for added corrosion resistance, this end to end cable coupler is installed with standard compression tooling. Center cable stops are provided to assure proper length of cable insertion, and smooth chamfers at each end of connector add to ease of installation. Sizes above 250 MCM are designed for two indents on each end of coupler.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Catalog Number
S - Inches
L - Inches
O.D. - Inches
6 Str.
MRC 6
1-1/8
2-3/8
.290
4 Str.
MRC 4
1-1/8
2-3/8
.340
3 Str.
MRC 3
1-1/4
2-5/8
.375
2 Str.
MRC 2
1-1/4
2-5/8
.416
1 Str.
MRC 1
1-3/8
2-7/8
.462
1/0 Str.
MRC 1/0
1-3/8
2-7/8
.512
2/0 Str.
MRC 2/0
1-1/2
3-1/8
.560
3/0 Str.
MRC 3/0
1-1/2
3-1/8
.620
4/0 Str.
MRC 4/0
1-5/8
3-3/8
.687
250 MCM
MRC 250
1-5/8
3-3/8
.750
300 MCM
MRC 300
2
4-1/8
.813
350 MCM
MRC 350
2
4-1/8
.875
400 MCM
MRC 400
2-1/8
4-3/8
.950
500 MCM
MRC 500
2-1/4
4-5/8
1.059
600 MCM
MRC 600
2-11/16
5-1/2
1.188
650 MCM
MRC 650
2-3/4
5-5/8
1.230
750 MCM
MRC 750
2-7/8
5-7/8
1.299
800 MCM
MRC 800
2-15/16
6
1.350
1000 MCM
MRC 1000
3
6-1/8
1.500
1250 MCM
MRC 1250
3-3/16
6-1/2
1.69
1500 MCM
MRC 1750
3-3/16
6-1/2
1.84
1750 MCM
MRC 2000
3-7/16
7
2
2000 MCM
MRC
3-7/16
7
2.125
