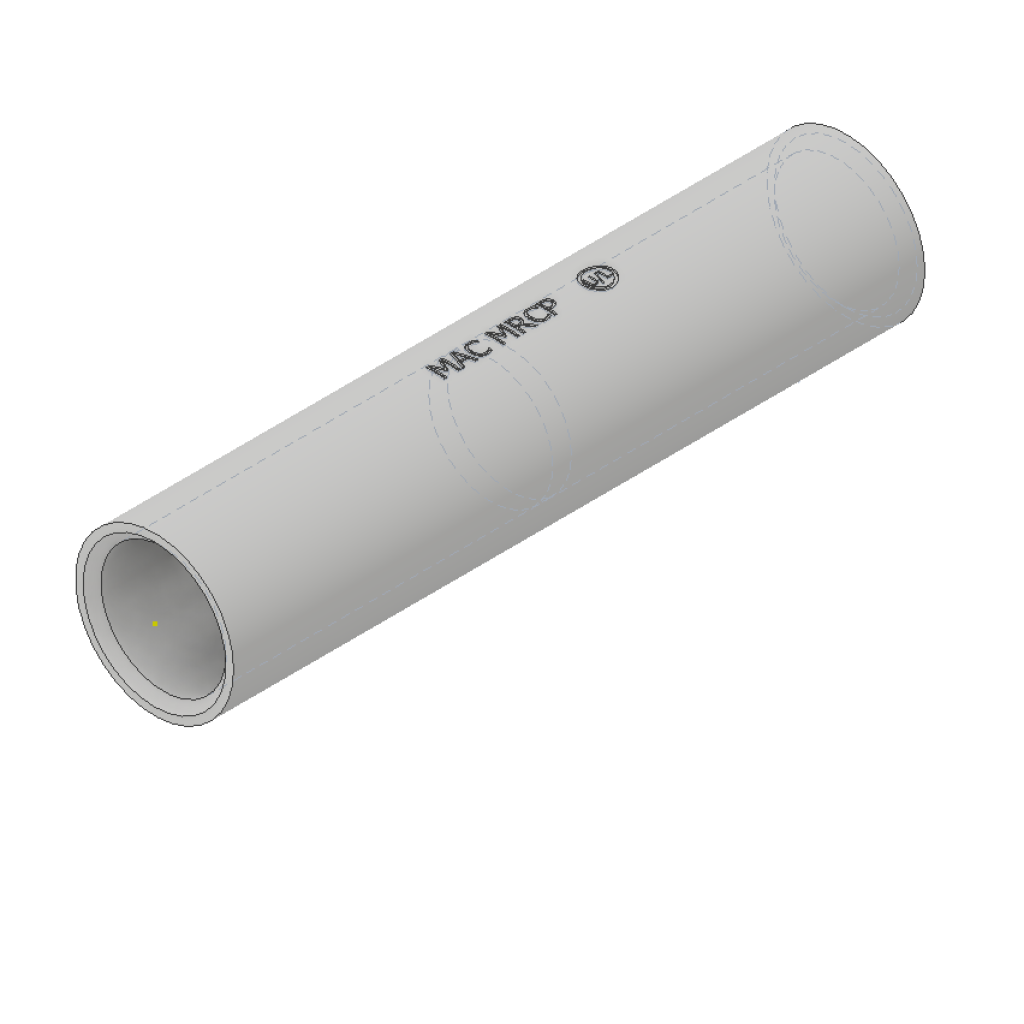

MRCP Copper Compression Coupler with Oil Seal Barrier 600V
Heavy Duty Copper Compression Coupler with Oil Barrier
Type MRCP long barrel compression coupler with oil seal barrier is available in cable sizes ranging from #1 Str. to 1000 MCM. A pure copper oil stop barrier is brazed in the center of the connector barrel, assuring a positive seal between cables. Fabricated of pure, seamless copper tubing and tin plated for corrosion resistance.
Product Specifications
For custom configurations, please consult the factory.
Catalog Number
Cable Size
S - Inches
L - Inches
MRCP 6
6
1-1/8
2-3/8
MRCP 4
4
1-1/8
2-3/8
MRCP 3
3
1-1/4
2-5/8
MRCP 2
2
1-1/4
2-5/8
MRCP 1
1
1-3/8
2-7/8
MRCP 1/0
1/0
1-3/8
2-7/8
MRCP 2/0
2/0
1-1/2
3-1/8
MRCP 3/0
3/0
1-1/2
3-1/8
MRCP 4/0
4/0
1-5/8
3-3/8
MRCP 250
250
1-5/8
3-1/8
MRCP 300
300
2
4-1/8
MRCP 350
350
2
4-1/8
MRCP 400
400
2-1/8
4-3/8
MRCP 500
500
2-1/4
4-5/8
MRCP 600
600
2-11/16
5-1/2
MRCP 750
750
2-7/8
5-7/8
MRCP 800
800
2-5/16
6
MRCP 1000
1000
3
6-1/8
