MSA Copper 1-Hole Compression Lug
Heavy Duty Copper Compression Lug with One Hole Mounting Pad with Inspection Window

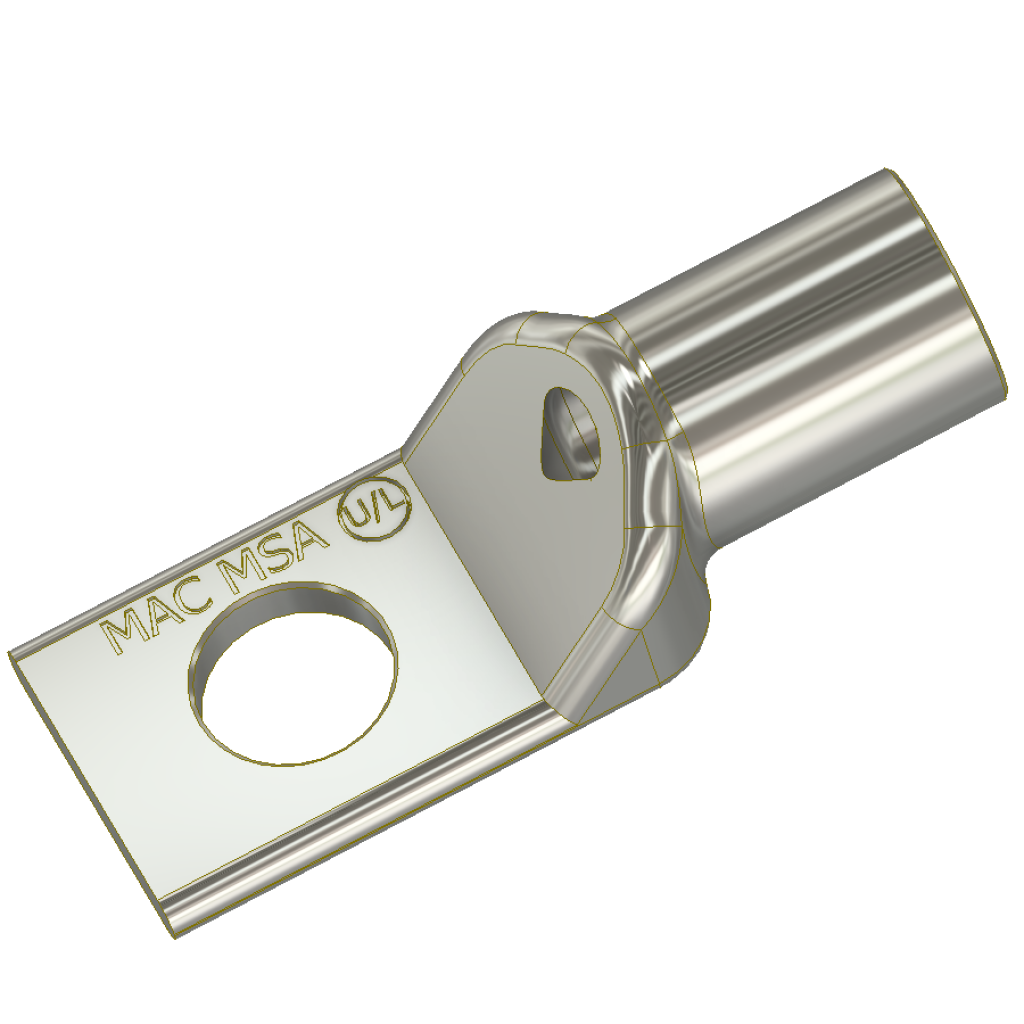

The type MSA is a single indent lug fabricated of pure, seamless copper tubing and tin plated for added resistance to corrosion. The window in the back of the barrel permits visual inspection of the cable insertion.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size
Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
T - Inches
Y - Inches
6 Str.
3/16
MSA 6-3
1-17/32
7/8
17/32
1/2
3/32
1/4
6 Str.
1/4
MSA 6-4
1-11/16
7/8
11/16
1/2
3/32
5/16
6 Str.
5/16
MSA 6-5
1-23/32
7/8
23/32
1/2
5/64
11/32
6 Str.
3/8
MSA 6-6
1-3/4
7/8
3/4
17/32
5/64
11/32
5 Str.
5/16
MSA 5-5
1-17/32
7/8
3/4
17/32
5/64
11/32
4 Str.
3/16
MSA 4-3
1-11/16
7/8
17/32
9/16
3/32
1/4
4 Str.
1/4
MSA 4-4
1-3/4
7/8
11/16
9/16
5/64
5/16
4 Str.
5/16
MSA 4-5
1-7/8
7/8
3/4
9/16
5/64
11/32
4 Str.
3/8
MSA 4-6
1-25/32
7/8
7/8
9/16
5/64
13/32
2 Str.
1/4
MSA 2-4
1-27/32
7/8
1
5/8
7/64
11/32
2 Str.
5/16
MSA 2-5
1-29/32
7/8
23/32
5/8
7/64
3/8
2 Str.
3/8
MSA 2-6
2-1/32
7/8
25/32
11/16
3/32
7/16
2 Str.
1/2
MSA 2-8
2-3/16
7/8
29/32
25/32
3/32
1/2
1 Str.
1/4
MSA 1-4
1-27/32
7/8
1-1/16
11/16
7/64
11/32
1 Str.
5/16
MSA 1-5
1-29/32
7/8
23/32
11/16
7/64
3/8
1 Str.
3/8
MSA 1-6
2-1/32
7/8
25/32
11/16
3/32
7/16
1 Str.
1/2
MSA 1-8
2-3/16
7/8
29/32
3/4
3/32
1/2
1/0 Str.
1/4
MSA 1/0-4
1-27/32
7/8
1-1/16
3/4
1/8
11/32
1/0 Str.
5/16
MSA 1/0-5
1-29/32
7/8
25/32
3/4
1/8
3/8
1/0 Str.
3/8
MSA 1/0-6
2-3/32
7/8
29/32
3/4
1/8
7/16
1/0 Str.
1/2
MSA 1/0-8
2-3/16
7/8
1-1/16
13/16
1/8
1/2
2/0 Str.
5/16
MSA 2/0-5
1-31/32
7/8
25/32
13/16
1/8
3/8
2/0 Str.
3/8
MSA 2/0-6
2-3/32
7/8
29/32
13/16
1/8
7/16
2/0 Str.
1/2
MSA 2/0-8
2-1/4
7/8
1-1/16
13/16
1/8
1/8
3/0 Str.
5/16
MSA 3/0-5
2-1/8
1
25/32
29/32
1/8
3/8
3/0 Str.
3/8
MSA 3/0-6
2-1/4
1
29/32
29/32
1/8
7/16
3/0 Str.
1/2
MSA 3/0-8
2-13/32
1
1-1/16
29/32
1/8
1/2
4/0 Str.
5/16
MSA 4/0-5
2-3/16
1
25/32
1
9/64
3/8
4/0 Str.
3/8
MSA 4/0-6
2-5/16
1
29/32
1
9/64
7/16
4/0 Str.
1/2
MSA 4/0-8
2-15/32
1
1-1/16
1
9/64
1/2
250 MCM
3/8
MSA 250-6
2-7/16
1-1/8
29/32
1-3/32
5/32
7/16
250 MCM
1/2
MSA 250-8
2-11/16
1-1/8
1-5/32
1-3/32
5/32
17/32
300 MCM
1/2
MSA 300-8
2-11/16
1-1/8
1-5/32
1-3/16
5/32
17/32
300 MCM
5/8
MSA 300-9
2-15/16
1-1/8
1-13/32
1-3/16
5/32
5/8
350 MCM
1/2
MSA 350-8
2-11/16
1-1/8
1-5/32
1-9/32
11/64
17/32
350 MCM
5/8
MSA 350-9
2-15/16
1-1/8
1-13/32
1-9/32
11/64
5/8
400 MCM
1/2
MSA 400-8
2-3/4
1-3/16
1-5/32
1-13/32
3/16
16/32
400 MCM
5/8
MSA 400-9
3
1-3/16
1-13/32
1-13/32
3/16
5/8
500 MCM
1/2
MSA 500-8
3-11/32
1-3/8
1-17/32
1-17/32
15/64
5/8
500 MCM
5/8
MSA 500-9
3-11/32
1-3/8
1-17/32
1-17/32
15/64
5/8
600 MCM
1/2
MSA 600-8
3-19/32
1-3/8
1-3/4
1-23/32
17/64
7/8
600 MCM
5/8
MSA 600-9
3-19/32
1-3/8
1-3/4
1-23/32
17/64
7/8
750 MCM
1/2
MSA 750-8
4-1/32
1-5/8
1-15/16
1-29/32
9/32
7/8
750 MCM
5/8
MSA 750-9
4-1/32
1-5/8
1-15/16
1-29/32
9/32
7/8
800 MCM
1/2
MSA 800-8
4-1/32
1-5/8
1-15/16
1-31/32
19/64
15/16
800 MCM
5/8
MSA 800-9
4-1/32
1-5/8
1-15/16
1-31/32
19/64
15/16
1000 MCM
5/8
MSA 1000
4-1/2
1-7/8
2-1/8
2-3/16
11/32
15/16
1500 MCM
3/4
MSA 1500
5-15/32
2-27/32
2-1/4
2-11/16
25/64
1-1/8
2000 MCM
3/4
MSA 2000
5-15/16
3-1/16
2-3/8
3-1/16
15/32
1-1/16
