MSB Copper 2-Hole Compression Lug
Heavy Duty Compression Lug with Two Hole Mounting Pad with Inspection Window

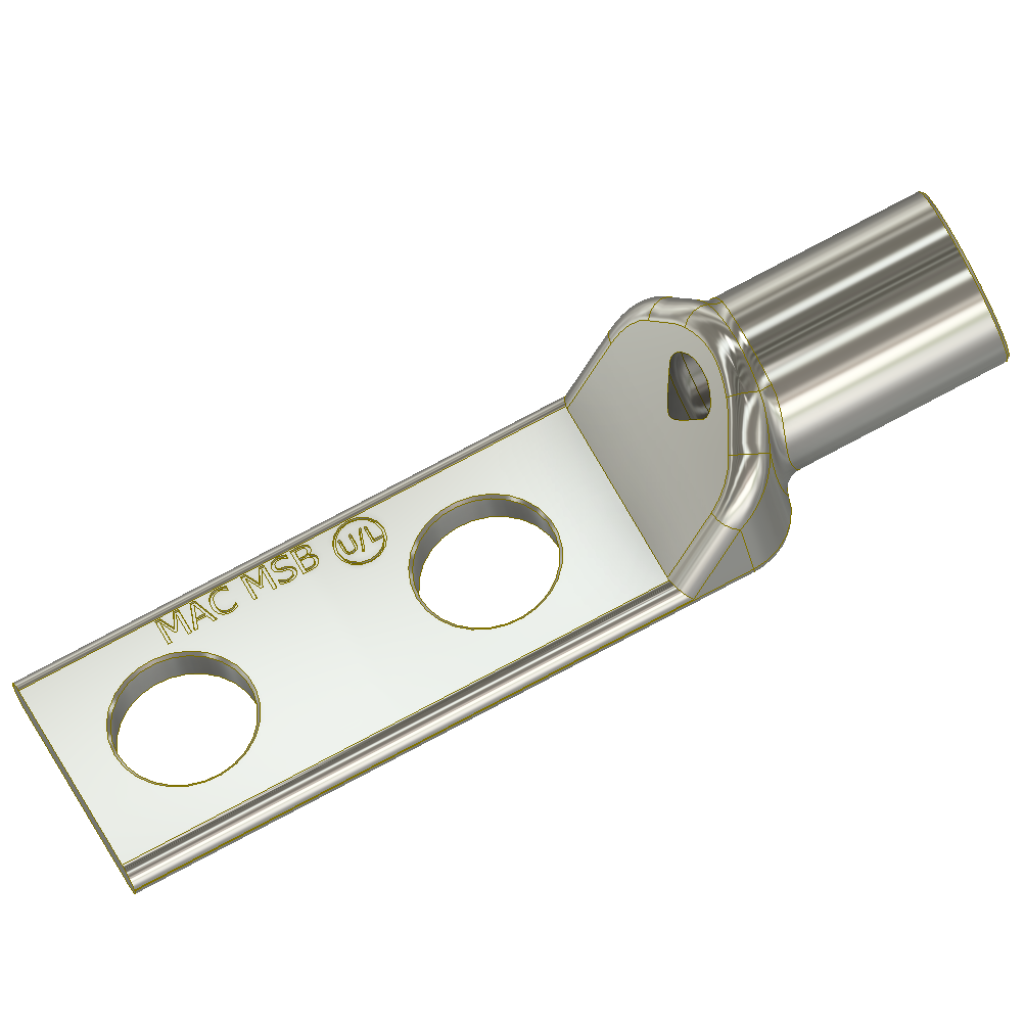

A two hole, single indent lug which is produced from pure, seamless copper tubing, the type MSB is tin plated for added resistance to corrosion. The window in the back of the barrel permits visual inspection of the cable insertion.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size
Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
Y - Inches
X - Inches
T - Inches
6 Str.
1/4
MSB 6-4
2-1/8
7/8
1-1/8
1/2
1/4
5/8
3/32
4 Str.
1/4
MSB 4-4
2-1/8
7/8
1-1/8
9/16
1/4
5/8
5/64
2 Str.
1/4
MSB 2-4
2-3/16
7/8
1/8
5/8
1/4
5/8
7/64
1 Str.
1/4
MSB 1-4
2-1/4
7/8
1-1/8
11/16
1/4
5/8
7/64
1/0 Str.
3/8
MSB 1/0-6
2-15/16
7/8
1-13/16
3/4
3/8
1
1/8
2/0 Str.
3/8
MSB 2/0-6
3
7/8
1-13/16
13/16
3/8
1
1/8
2/0 Str.
1/2
MSB 2/0-8N
4
7/8
2-13/16
13/16
9/16
-1-3/4
1/8
3/0 Str.
3/8
MSB 3/0-6
3-5/32
1
1-13/16
29/32
3/8
1
1/8
3/0 Str.
1/2
MSB 3/0-8N
4-5/32
1
2-13/16
29/32
9/16
1-3/4
1/8
4/0 Str.
3/8
MSB 4/0-6
3-7/32
1
1-13/16
1
3/8
1
9/64
4/0 Str.
1/2
MSB 4/0-8N
4-7/32
1
2-13/16
1
9/16
1-3/4
9/64
250 MCM
3/8
MSB 250-6
3-11/32
1-1/8
1-13/16
1-3/32
3/8
1
5/32
250 MCM
1/2
MSB 250-8N
4-11/32
1-1/8
2-13/16
1-3/32
9/16
1-3/4
5/32
300 MCM
3/8
MSB 300-6
3-11/32
1-1/8
1-13/16
1-3/16
3/8
1
5/32
300 MCM
1/2
MSB 300-8N
4-11/32
1-1/8
2-13/16
1-3/16
9/16
1-3/4
5/32
350 MCM
3/8
MSB 350-6
3-11/32
1-1/8
1-13/16
1-9/32
3/8
1
11/64
350 MCM
1/2
MSB 350-8N
4-11/32
1-1/8
2-13/16
1-9/32
9/16
1-3/4
11/64
400 MCM
3/8
MSB 400-6
3-11/32
1-3/16
1-13/16
1-13/32
3/8
1
3/16
400 MCM
1/2
MSB 400-8N
4-13/32
1-3/16
2-13/16
1-13/32
9/16
1-3/4
3/16
500 MCM
3/8
MSB 500-6
3-19/32
1-3/8
1-13/16
1-17/32
3/8
1
15/64
500 MCM
1/2
MSB 500-8N
4-19/32
1-3/8
2-13/16
1-17/32
9/16
1-3/4
15/64
600 MCM
1/2
MSB 600-8N
4-21/32
1-3/8
2-13/16
1-23/32
9/16
1-3/4
17/64
750 MCM
1/2
MSB 750-8N
4-29/32
1-5/8
2-13/16
1-29/32
9/16
1-3/4
9/32
800 MCM
1/2
MSB 800-8N
4-29/32
1-5/8
2-13/16
1-31/32
9/16
1-3/4
19/64
1000 MCM
1/2
MSB 1000-8N
5-3/16
1-7/8
2-13/16
2-3/16
9/16
1-3/4
11/32
1500 MCM
1/2
MSB 1500-8N
6-1/16
2-3/4
2-13/16
3-1/16
1/2
1-3/4
25/64
2000 MCM
1/2
MSB 2000-8N
6-3/8
3-1/16
2-13/16
3-1/16
1/2
1-3/4
15/32
