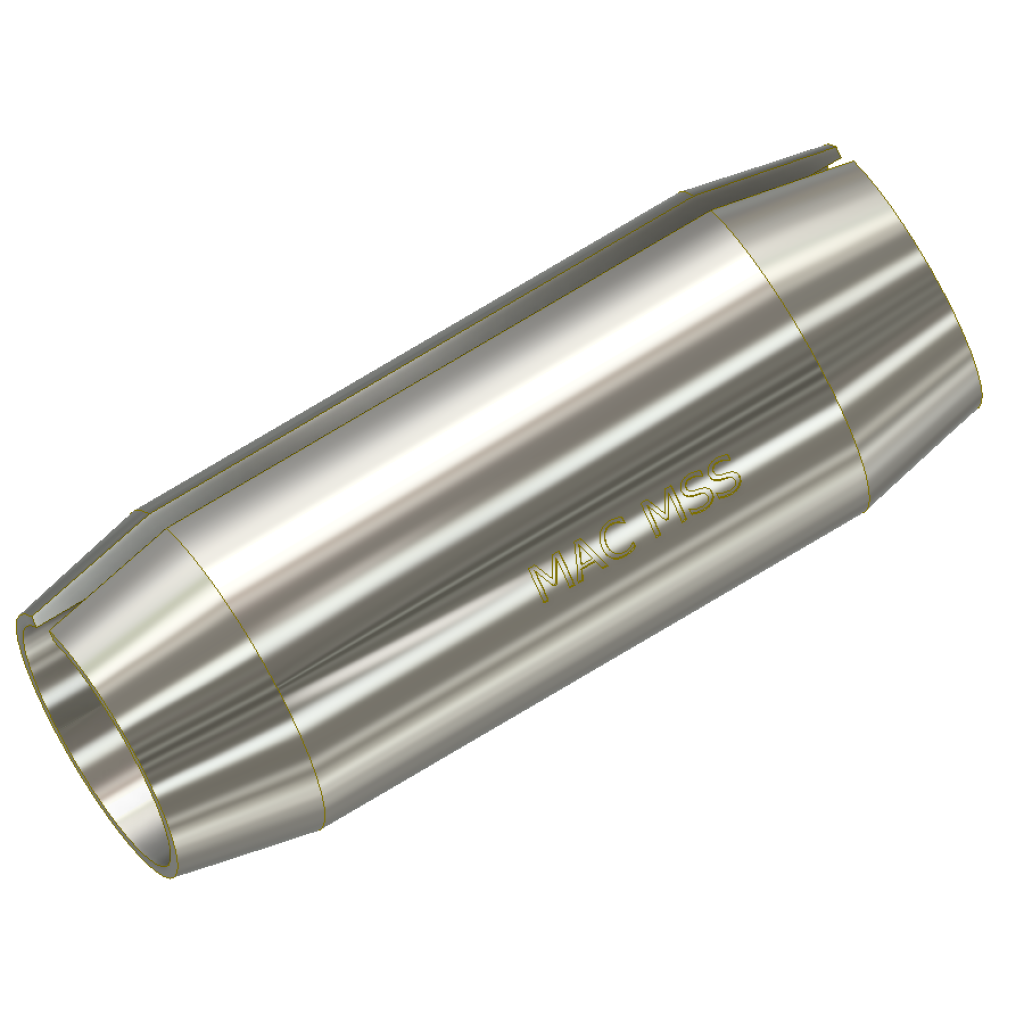

MSS Split Tinned Solder Coupler
Heavy Duty Copper Solder Coupler
Produced in accordance with E.E.I. specifications, MAC type MSS split tinned solder couplers are fabricated from pure copper and hot tin coated. These couplers are designed for use whenever a soldered connection is specified.

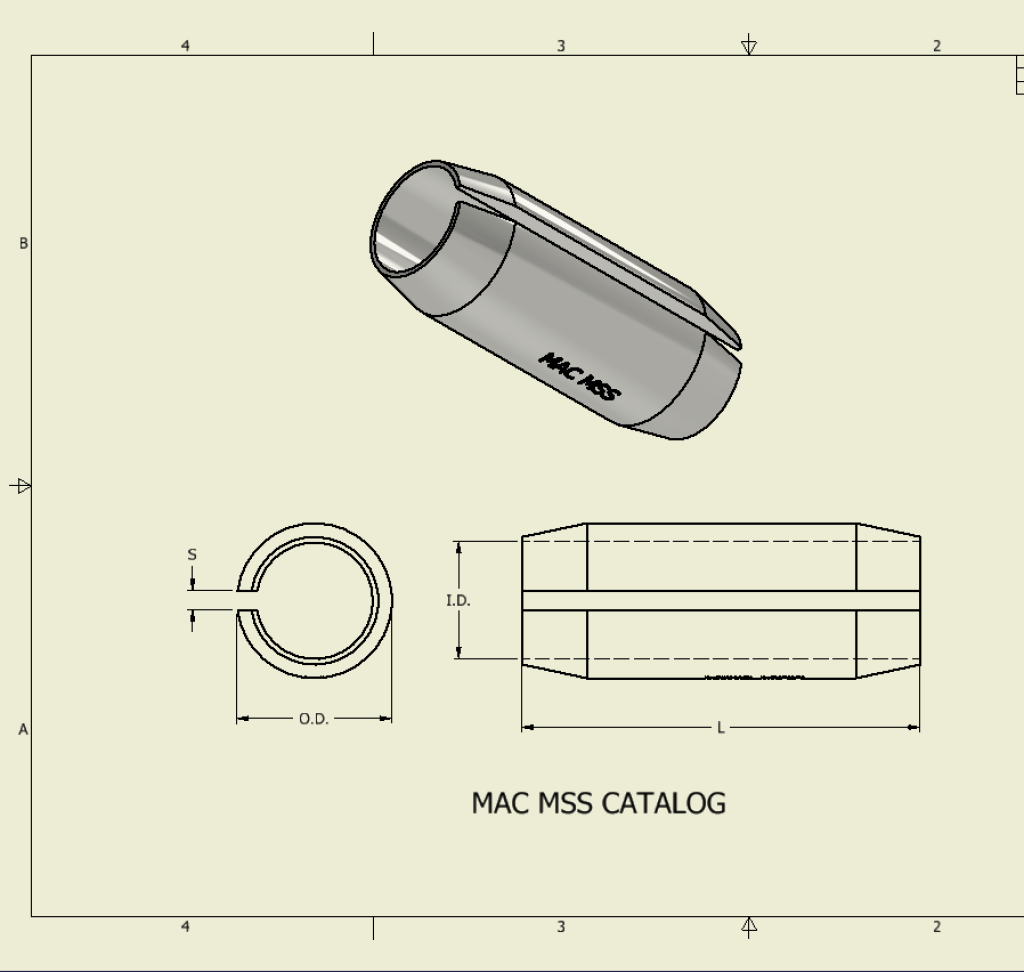

Product Specifications
For custom configurations, please consult the factory.
Cable Size
Catalog Number
L - Inches
I.D. - Inches
O.D. - Inches
S - Inches
6 Str.
MSS 6
1-1/2
0.189
0.251
.030
5 Str.
MSS 5
1-1/2
0.211
0.281
.030
4 Str.
MSS 4
2
0.237
0.315
.030
3 Str.
MSS 3
2
0.265
0.353
.030
2 Str.
MSS 2
2
0.297
0.395
.030
1 Str.
MSS 1
2
0.337
0.449
.070
1/0 Str.
MSS 1/0
2
0.378
0.504
.070
2/0 Str.
MSS 2/0
2
0.423
0.565
.070
3/0 Str.
MSS 3/0
2
0.475
0.635
.070
4/0 Str.
MSS 4/0
2-1/2
0.533
0.713
.070
250 MCM
MSS 250
2-1/2
0.581
0.778
.120
300 MCM
MSS 300
2-1/2
0.635
0.849
.120
350 MCM
MSS 350
2-1/2
0.690
0.92
.120
400 MCM
MSS 400
3
0.740
0.986
.120
450 MCM
MSS 450
3
0.784
1.046
.120
500 MCM
MSS 500
3
0.826
1.102
.120
550 MCM
MSS 550
3
0.868
1.154
.175
600 MCM
MSS 600
3-1/2
0.906
1.206
.175
650 MCM
MSS 650
3-1/2
0.948
1.26
.175
700 MCM
MSS 700
3-1/2
0.983
1.307
.175
750 MCM
MSS 750
3-1/2
1.018
1.356
.175
800 MCM
MSS 800
4
1.050
1.4
.175
850 MCM
MSS 850
4
1.083
1.441
.220
900 MCM
MSS 900
4
1.115
1.483
.220
1000 MCM
MSS 1000
4-1/2
1.175
1.565
.220
1250 MCM
MSS 1250
4-1/2
1.320
1.754
.220
1500 MCM
MSS 1500
5
1.440
1.912
.280
1750 MCM
MSS 1750
5-1/2
1.560
2.074
.280
2000 MCM
MSS 2000
6
1.664
2.214
.280
