MTAP Aluminum High-Voltage Coupler 5KV–35KV

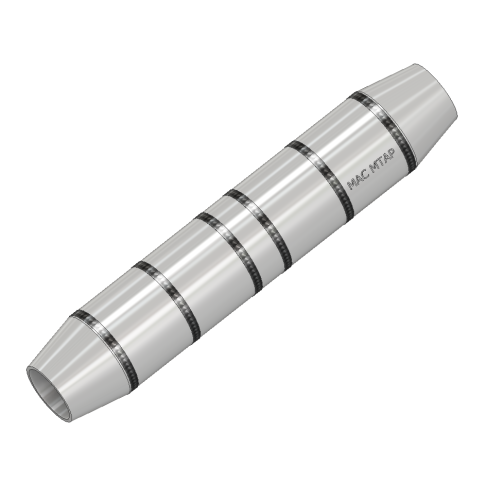

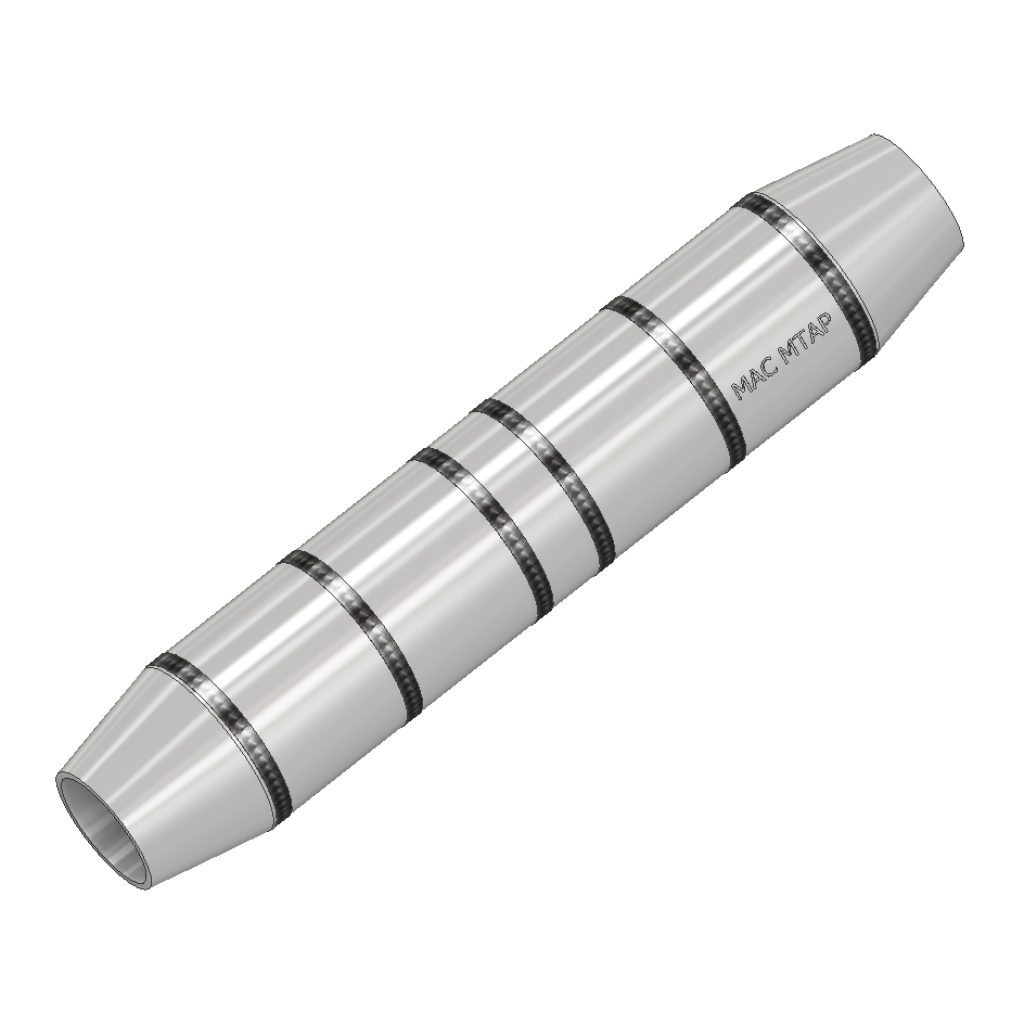

Aluminum High Voltage Compression Coupler
Designed for use on voltages of 5KV or higher, the type MTAP features smoothly tapered ends and an internal center barrier which provides a positive cable stop. Made of high conductivity, seamless aluminum tubing, the MTAP coupler is supplied with MACTEX HV Inhibiting Compound.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Catalog Number
L - Inches
S- Inches
B - Inches
O.D. - Inches
8 Str.
MTAP 8
1-11/16
3/4
11/16
0.296
6 Str.
MTAP 6
1-7/8
3/4
13/16
0.338
4 Str.
MTAP 4
2-5/8
1
1-3/16
0.438
2 Str.
MTAP 2
3
1-1/8
1-3/8
0.531
1 Str.
MTAP 1
2-3/4
1-1/8
1-1/4
0.531
1/0 Str.
MTAP 1/0
3
1-3/16
1-3/8
0.593
2/0 Str.
MTAP 2/0
3-3/8
1-1/4
1-9/16
0.687
3/0 Str.
MTAP 3/0
3-1/2
1-1/4
1-5/8
0.76
4/0 Str.
MTAP 4/0
3-7/8
1-7/16
1-13/16
0.85
250 MCM
MTAP 250
4-1/8
1-7/16
1-7/8
0.938
300 MCM
MTAP 300
4-1/2
1-9/16
2-1/16
1.01
350 MCM
MTAP 350
5-9/16
1-31/32
2-19/32
1.125
400 MCM
MTAP 400
6-5/16
2-11/32
2-31/32
1.187
500 MCM
MTAP 500
6-7/8
2-1/2
3-1/4-
1.32
600 MCM
MTAP 600
7-1/8
2-1/2
3-3/8
1.438
750 MCM
MTAP 750
7-1/8
2-9/16
3-3/8
1.5
750 MCM
MTAP 750
7-1/2
2-9/16
3-9/16
1.59
800 MCM
MTAP 800
7-3/4
2-11/16
3-11/16
1.66
1000 MCM
MTAP 1000
8-5/8
2-15/16
4-1/8
1.843
1250 MCM
MTAP 1250
9-1/4
2-15/16
4-3/8
2.08
1500 MCM
MTAP 1500
10-1/2
3-1/2
5
2.26
1750 MCM
MTAP 1750
10-7/8
3-9/16
5-3/16
2.44
2000 MCM
MTAP 2000
11-1/2
3-11/16
5-1/2
2.6
