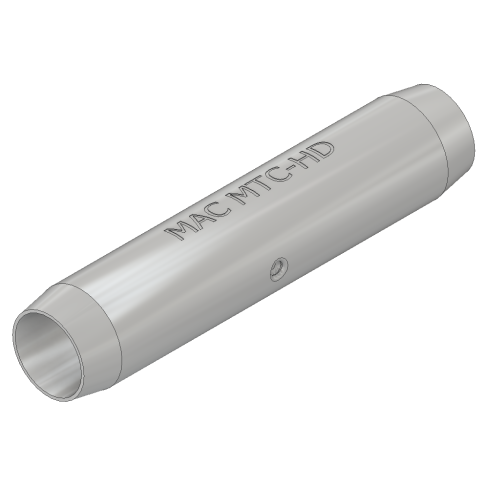

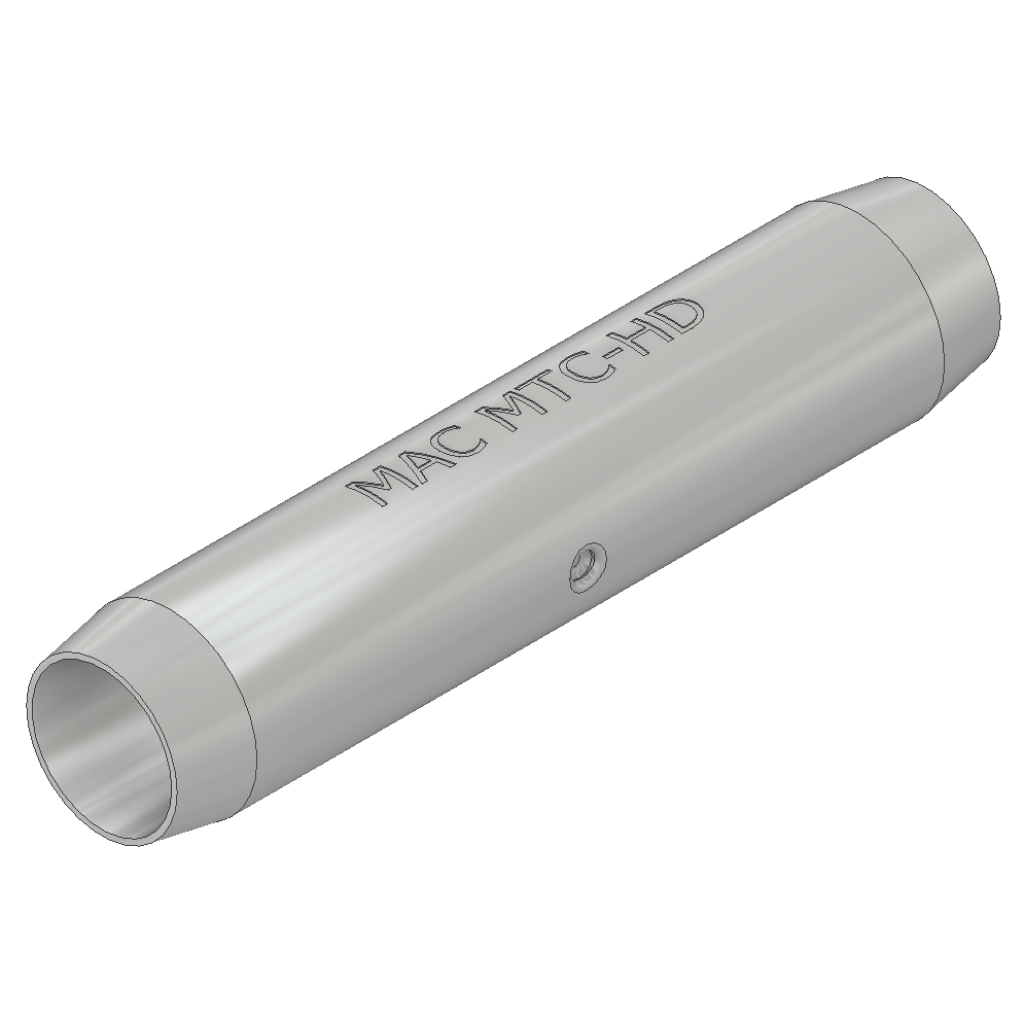

MTC-HD Tapered Copper Heavy-Duty Compression Coupler 5KV–35KV
Heavy Duty Copper Compression Coupler
Type MTC-HD is similar to type MTC, except it is designed for heavy duty applications. The barrel length is considerably longer to accommodate additional crimps.
Product Specifications
For custom configurations, please consult the factory.
Catalog Number
Cable Size
O.D. - Inches
S - Inches
T - Inches
L - Inches
MTC 6-HD
6
.290
1-1/8
Nom.
2-3/8
MTC 4-HD
4
.340
1-1/8
Nom.
2-3/8
MTC 3-HD
3
0.375
1-1/4
Nom.
2-5/8
MTC 2-HD
2
.416
1-1/4
Nom.
2-5/8
MTC 1-HD
1
.462
1-3/8
Nom.
2-7/8
MTC 1/0-HD
1/0
.512
1-3/8
1/8
3-1/8
MTC 2/0-HD
2/0
.560
1-1/2
1/8
3-3/8
MTC 3/0-HD
3/0
.620
1-1/2
1/8
3-3/8
MTC 4/0-HD
4/0
.687
1-5/8
1/8
3-5/8
MTC 250-HD
250
.750
1-5/8
3/16
3-3/4
MTC 300-HD
300
.813
2
3/16
4-1/2
MTC 350-HD
350
.875
2
3/16
4-1/2
MTC 400-HD
400
.950
2-1/8
1/4
4-7/8
MTC 500-HD
500
1.059
2-1/4
1/4
5-1/8
MTC 600-HD
600
1.188
2-11/16
3/8
6-1/4
MTC 750-HD
750
1.299
2-7/8
3/8
6-5/8
MTC 800-HD
800
1.350
2-15/16
7/16
6-7/8
MTC 1000-HD
1000
1.500
3
1/2
7-1/8
