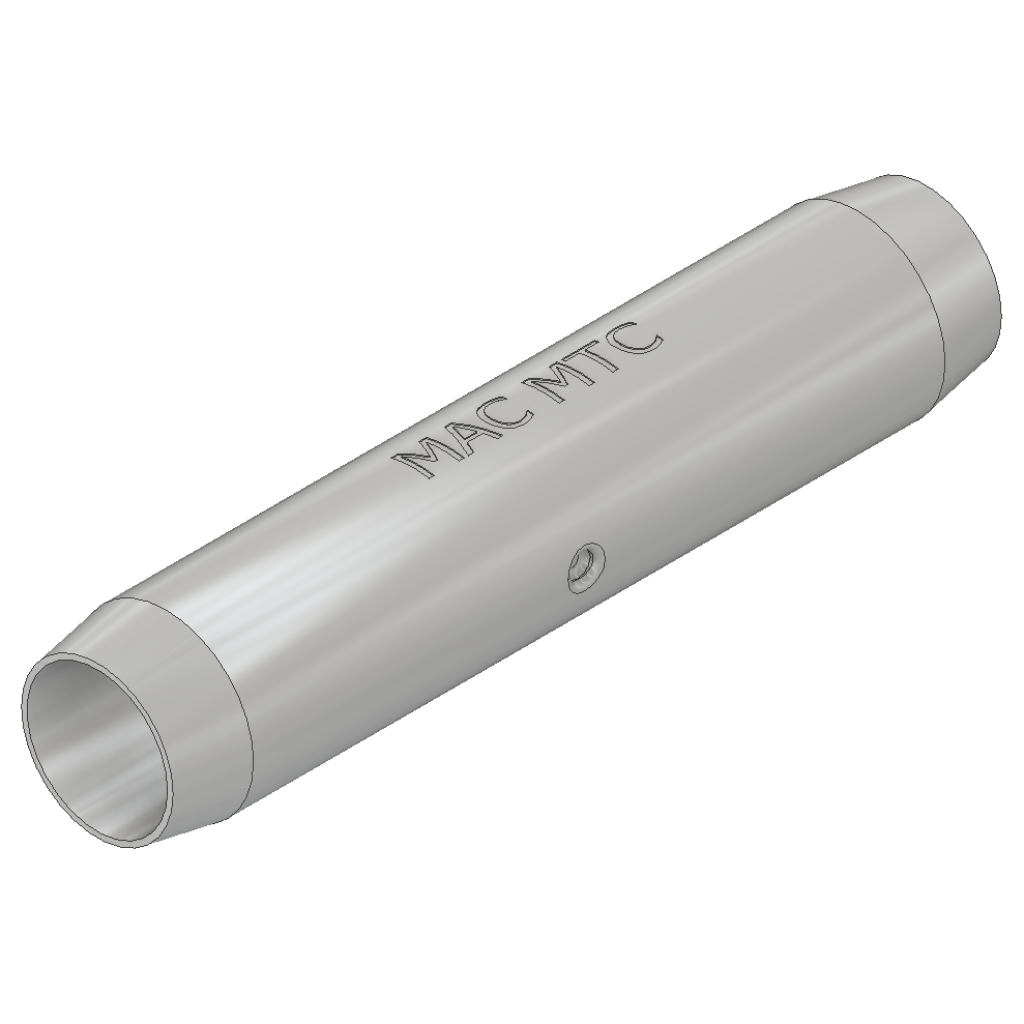

MTC Tapered Copper Compression Coupler 5KV–35KV
Heavy Duty Copper Compression Coupler
The MAC Type MTC is designed for use on copper cables operating at voltages of 5KV and higher. The smooth tapered ends of this coupler minimize the corona effect of the connection at higher voltages. Produced from pure, seamless copper tubing and tin plated for corrosion resistance, this connector is provided with center cable stops to assure proper length of cable insertion.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Catalog Number
L - Inches
S - Inches
O.D. - Inches
6 Str.
MTC 6
1-29/32
7/8
.29
4 Str.
MTC 4
1-29/32
7/8
.34
2 Str.
MTC 2
2-1/16
31/32
.42
1 Str.
MTC 1
2-1/16
31/32
.46
1/0 Str.
MTC 1/0
2-1/16
31/32
.51
2/0 Str.
MTC 2/0
2-7/32
1-1/32
.56
3/0 Str.
MTC 3/0
2-13/32
1-1/8
.62
4/0 Str.
MTC 4/0
2-3/8
1-1/8
.69
250 MCM
MTC 250
2-9/16
1-7/32
.75
300 MCM
MTC 300
2-5/8
1-1/4
.81
350 MCM
MTC 350
2-25/32
1-5/16
.88
400 MCM
MTC 400
2-31/32
1-7/16
.95
500 MCM
MTC 500
3-17/32
1-11/16
1.06
650 MCM
MTC 650
3-7/8
1-15/16
1.230
750 MCM
MTC 750
4-7/32
2-1/16
1.30
1000 MCM
MTC 1000
4-31/32
2-7/16
1.50
