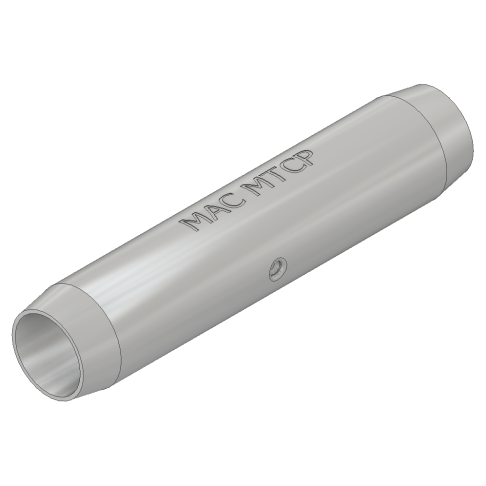

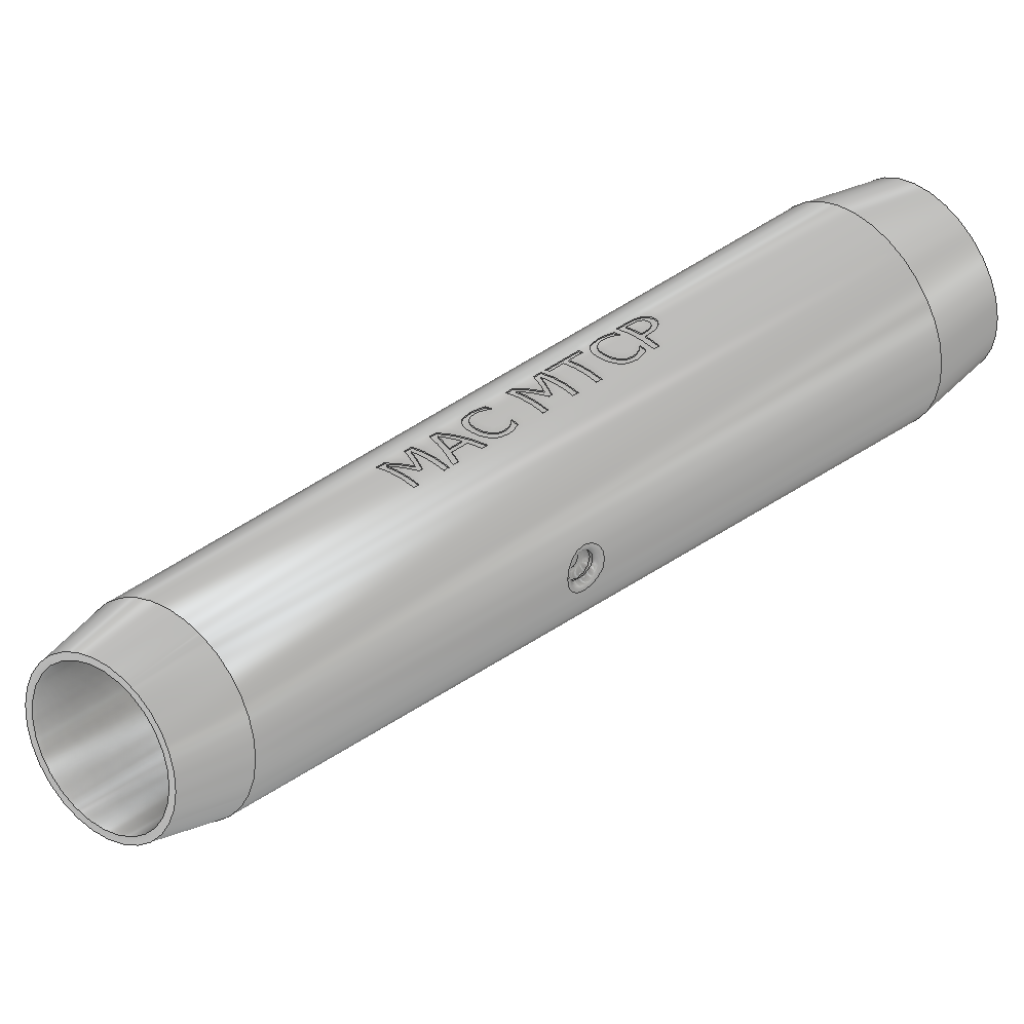

MTCP Tapered Copper Compression Coupler with Oil Stop Barrier 5KV–35KV
Heavy Duty Copper Compression Coupler w/ Oil Stop Barrier
Type MTCP is similar to MAC type MTC except that it is supplied with a pure copper oil stop barrier brazed in the center of the connector barrel. Produced from pure, seamless copper tubing and tin plated for resistance to corrosion. Type MTCP is recommended for use on copper cables of voltages 5 KV or higher.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Catalog Number
L - Inches
S - Inches
O.D. - Inches
T - Inches
6 Str.
MTCP 6
1-29/32
7/8
.290
Nom.
4 Str.
MTCP 4
1-29/32
7/8
.340
Nom.
2 Str.
MTCP 2
2-1/16
31/32
.416
Nom.
1 Str.
MTCP 1
2-1/16
31/32
.462
Nom.
1/0 Str.
MTCP 1/0
2-1/16
31/32
.512
1/8
2/0 Str.
MTCP 2/0
2-7/32
1-1/32
.560
1/8
3/0 Str.
MTCP 3/0
2-13/32
1-1/8
.620
1/8
4/0 Str.
MTCP 4/0
2-3/8
1-1/8
.687
1/8
250 MCM
MTCP 250
2-9/16
1-7/32
.750
3/16
300 MCM
MTCP 300
2-5/8
1-1/4
.813
3/16
350 MCM
MTCP 350
2-25/32
1-5/16
.875
3/16
400 MCM
MTCP 400
2-31/32
1-7/16
.950
1/4
500 MCM
MTCP 500
3-17/32
1-11/16
1.059
1/4
600 MCM
MTCP 600
3-3/4
1-13/16
1.188
3/8
750 MCM
MTCP 750
4-7/32
2-1/16
1.299
3/8
800 MCM
MTCP 800
4-7/16
2-5/32
1.350
7/16
1000 MCM
MTCP 1000
4-31/32
2-7/16
1.500
1/2
