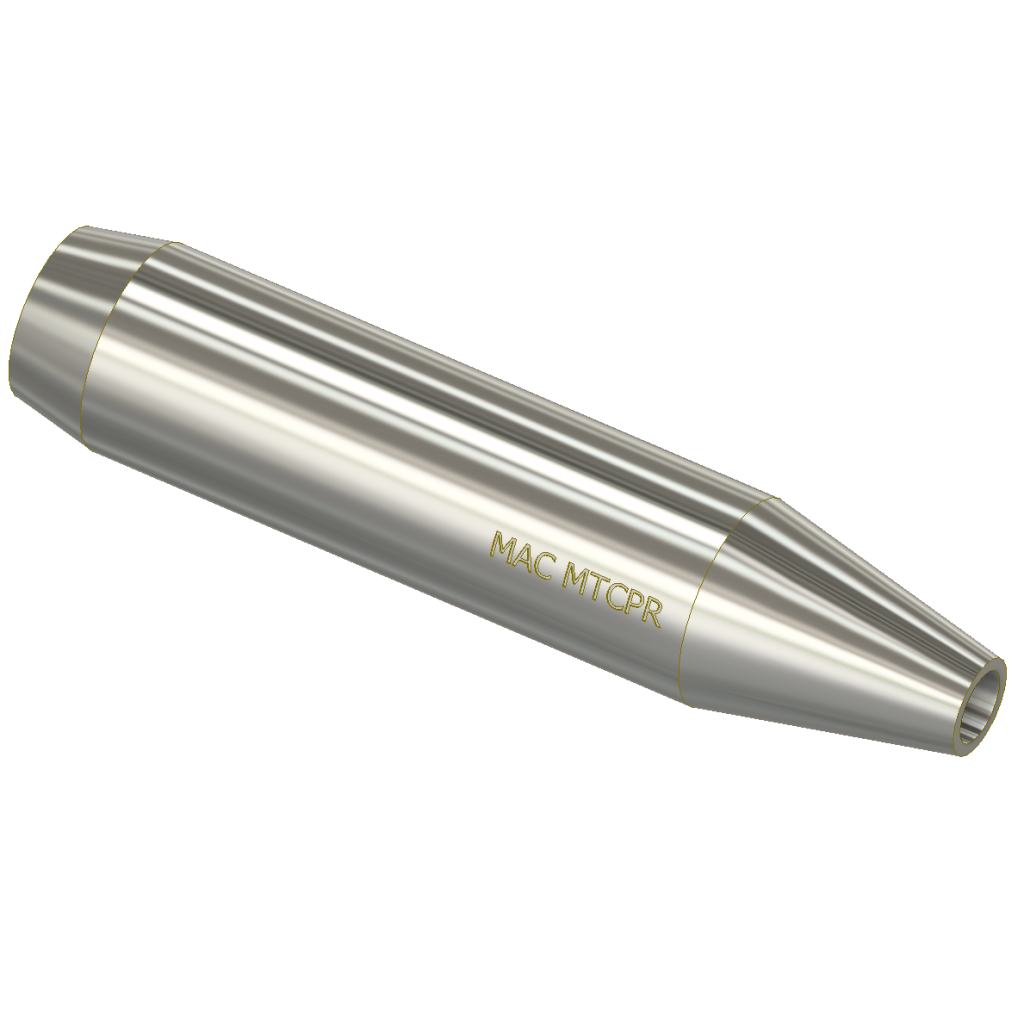

MTCPR Copper Reducing Connector 5KV–35KV
Heavy Duty Copper Compression Reducing Coupler with Oil Stop Barrier
These heavy duty reducing connectors are fabricated from pure copper rod and are factory drilled to accommodate particular cable sizes on either end. The sizes shown are of the most popular items called for, but any combination of sizes can be custom made to your specific application.
Product Specifications
For custom configurations, please consult the factory.
Catalog Number
L - Inches
B1 - Inches
B2 - Inches
O.D - Inches
MTCPR 2-6
2-1/2
31/32
1-5/32
0.416
MTCPR 2-4
2-7/16
31/32
1-1/16
0.416
MTCPR 1-2
2-17/32
31/32
1-1/16
0.462
MTCPR 1/0-2
2-9/16
31/32
1-1/8
0.512
MTCPR 1/0-1
2-1/2
31/32
1-1/32
0.512
MTCPR 2/0-2
2-31/32
1-1/32
1-5/16
0.560
MTCPR 1/0-1
2-3/4
1-1/32
1-3/32
0.560
MTCPR 2/0-110
2-23/32
1-1/32
1-1/16
0.560
MTCPR 3/0-2
3-1/4
1-1/8
1-1/2
0.620
MTCPR 4/0-2
3-7/16
1-1/8
1-11/16
.687
MTCPR 4/0-2/0
3-3/16
1-1/8
1-5/16
.687
MTCPR 250-2
2-23/32
1-7/32
1-7/8
.750
MTCPR 250-1
3-5/8
1-7/32
1-23/32
.750
MTCPR 250-1/0
3-9/16
1-7/32
1-21/32
.750
MTCPR 250-4/0
3-7/32
7/32
1-5/16
.750
MTCPR 350-2
4-1/4
1-5/16
2-1/4
.875
MTCPR 350-1/0
4
1-5/16
2
.875
MTCPR 350-2/0
3-15/16
1-5/16
1-7/8
.875
MTCPR 250-4/0
3-11/16
1-5/16
1-5/8
.875
MTCPR 400-2
4-9/16
1-7/16
2-7/16
.950
MTCPR 400-350
3-25/32
1-7/16
1-17/32
.950
MTCPR 500-1/0
5-1/8
1-11/16
2-11/16
1.059
MTCPR 500-2/0
5
1-11/16
2-1/2
1.059
MTCPR 500-4/0
4-13/16
1-11/16
2-3/8
1.059
MTCPR 500-250
4-11/16
1-11/16
2-1/4
1.059
MTCPR 500-350
4-7/16
1-11/16
1-7/8
1.059
MTCPR 500-400
4-3/8
1-11/16
1-13/16
1.059
MTCPR 600-4/0
5-3/16
1-3/4
2-5/8
1.188
MTCPR 600-350
4-15/16
1-3/4
2-5/16
1.188
MTCPR 600-500
4-9/16
1-3/4
1-15/16
1.188
