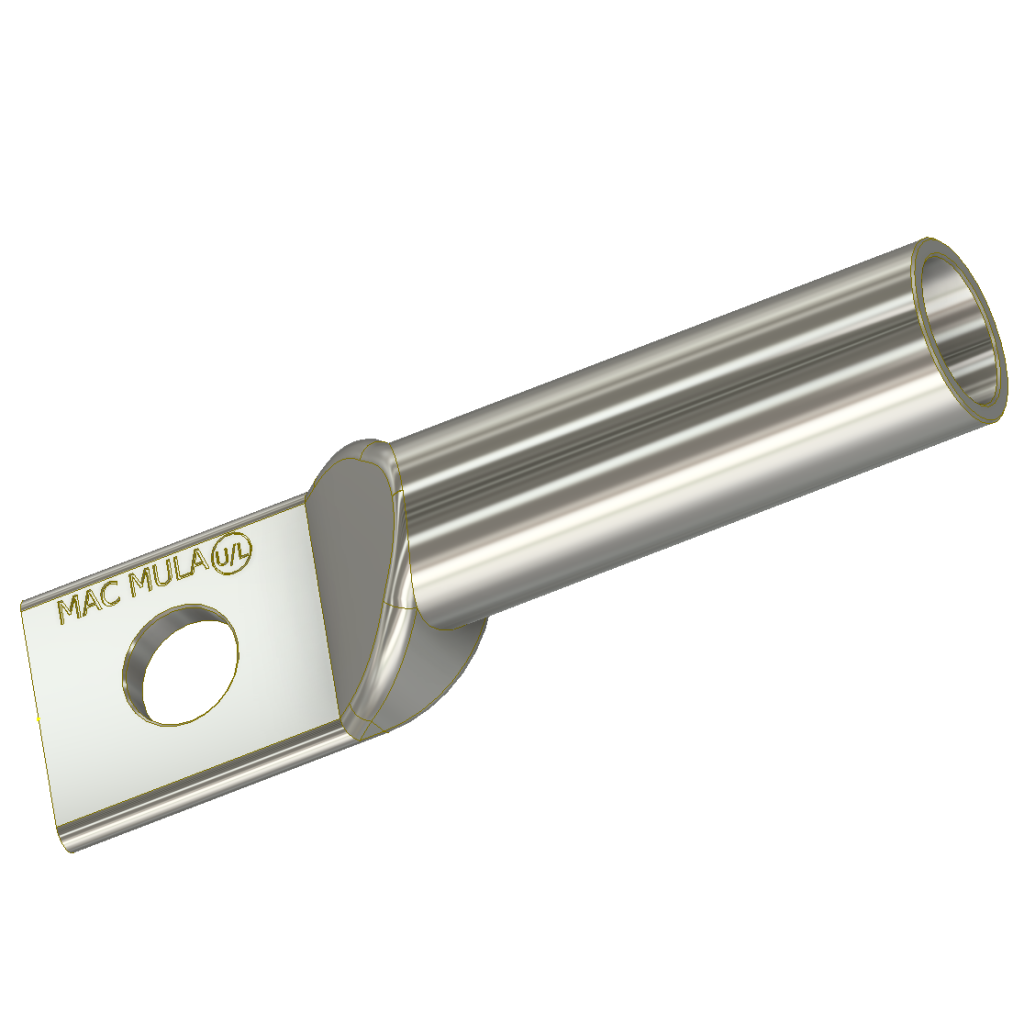

MULA Aluminum 1-Hole Compression Lug
Heavy Duty Aluminum Compression Lug with a One Hole Mounting Pad
Designed for use on secondary networks, these long barrel, heavy duty, one hole aluminum lugs are produced from seamless aluminum tubing and factory filled with MACTEX Inhibiting Compound. Installation is accomplished by use of standard compression tooling.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size
Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
Y - Inches
T - Inches
6 Str.
1/4
MULA 6-4
2-17/32
1-9/16
21/32
21/32
5/16
3/32
4 Str.
3/8
MULA 4-6
2-13/16
1-9/16
7/8
3/4
13/32
1/8
2 Str.
3/8
MULA 2-6
3-1/16
1-11/16
7/8
25/32
13/32
5/32
1 Str.
3/8
MULA 1-6
3-1/16
1-11/16
7/8
25/32
13/32
3/16
1/0 Str.
3/8
MULA 1/0-6
3-7/32
1-27/32
7/8
13/16
13/32
7/32
2/0 Str.
1/2
MULA 2/0-8
3-19/32
1-27/32
1-1/8
15/16
17/32
1/4
3/0 Str.
1/2
MULA 3/0-8
3-23/32
1-31/32
1/-1/8
1-1/16
17/32
9/32
4/0 Str.
1/2
MULA 4/0-8
3-29/32
2-3/32
1-1/8
1-5/32
17/32
5/16
250 MCM
1/2
MULA 250-8
4-7/16
2-19/32
1-1/8
1-1/4
17/32
11/32
300 MCM
1/2
MULA 300-8
4-29/32
2-27/32
1-9/32
1-3/8
5/8
3/8
350 MCM
1/2
MULA 350-8
5-25/32
3-17/32
1-3/8
1-1/2
5/8
3/8
400 MCM
1/2
MULA 400-8
6-1/32
3-21/32
1-3/8
1-5/8
5/8
7/16
500 MCM
1/2
MULA 500-8
6-7/32
3-25/32
1-3/8
1-13/16
5/8
7/16
600 MCM
1/2
MULA 600-8
6-13/32
3-29/32
1-3/8
2
5/8
9/16
700-750 MCM
1/2
MULA 750-8
6-27/32
4-7/32
1-3/8
2-1/16
5/8
9/16
800 MCM
1/2
MULA 800-8
6-31/32
4-11/32
1-3/8
2-1/4
5/8
5/8
1000 MCM
1/2
MULA 1000-8
8-5/32
5-15/32
1-3/8
2-17/32
5/8
11/16
