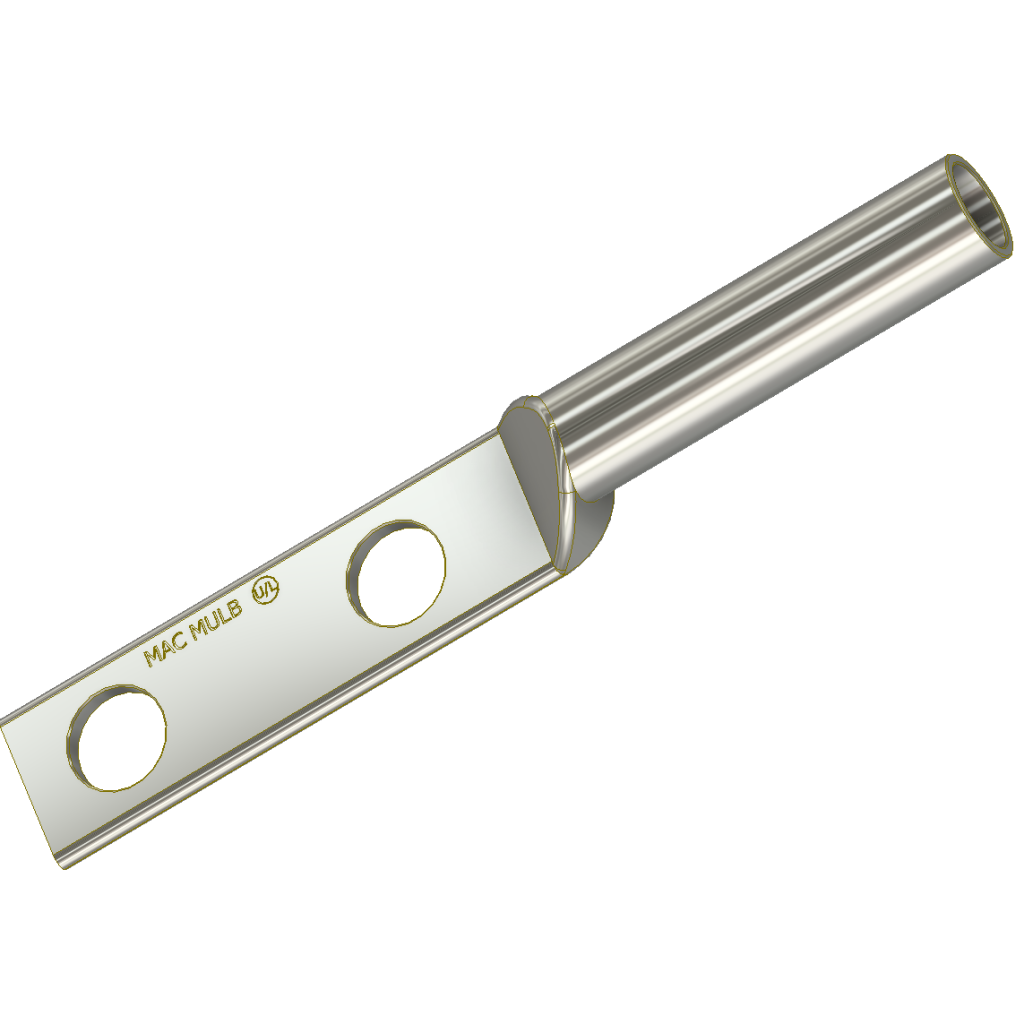

MULB Aluminum 2-Hole Compression Lug
Heavy Duty Aluminum Compression Lug with a Two Hole Mounting Pad
The type MULB is a heavy duty aluminum compression lug with a two hole mounting pad. Featuring long barrel construction. This lug is designed for use on secondary networks and is supplied prefilled with MACTEX Inhibiting Compound. Installed with standard compression tools.
Product Specifications
For custom configurations, please consult the factory.
Cable Size
Stud Size
Catalog Number
L - Inches
S - Inches
B - Inches
C - Inches
X - Inches
Y - Inches
T - Inches
1/0 Str.
3/8
MULB 1/0-6
4-15/32
1-27/32
2-1/8
13/16
1-1/16
13/32
7/32
2/0 Str.
1/2
MULB 2/0-8
5-15/32
1-27/32
3
15/16
1-3/4
5/8
1
3/0 Str.
1/2
MULB 3/0-8
5-19/32
1-31/32
3
1-1/16
1-3/4
5/8
9/32
4/0 Str.
1/2
MULB 4/0-8
5-25/32
2-3/32
3
1-5/32
1-3/4
5/8
5/16
250 MCM
1/2
MULB 250-8
6-5/16
2-19/32
3
1-1/4
1-3/4
5/8
11/32
300 MCM
1/2
MULB 300-8
6-5/8
2-27/32
3
1-3/8
1-3/4
5/8
3/8
350 MCM
1/2
MULB 350-8
7-13/32
3-17/32
3
1-1/2
1-3/4
5/8
3/8
400 MCM
1/2
MULB 400-8
7-21/32
3-21/32
3
1-5/8
1-3/4
5/8
7/16
500 MCM
1/2
MULB 500-8
8-1/32
3-25/32
3
1-13/16
1-3/4
5/8
7/16
600 MCM
1/2
MULB 600-8
8-15/32
3-29/32
3
2
1-3/4
5/8
9/16
700-750 MCM
1/2
MULB 750-8
8-15/32
4-7/32
3
2-1/16
1-3/4
5/8
9/16
800 MCM
1/2
MULB 800-8
8-19/32
4-11/32
3
2-1/4
1-3/4
5/8
5/8
1000 MCM
1/2
MULB 1000-8
9-25/32
5-15/32
3
2-17/32
1-3/4
5/8
21/32
1250 MCM
1/2
MULB 1250-8
10-17/32
10-17/32
3
2-13/16
1-3/4
5/8
3/4
1500 MCM
1/2
MULB 1500-8
11-11/32
11-11/32
3
3-1/16
1-3/4
5/8
13/16
1750 MCM
1/2
MULB 1750-8
11-7/8
11-7/8
3
3-5/16
1-3/4
5/8
7/8
2000 MCM
1/2
MULB 2000-8
12
7-9/16
3
3-1/2
1-3/4
5/8
15/16
