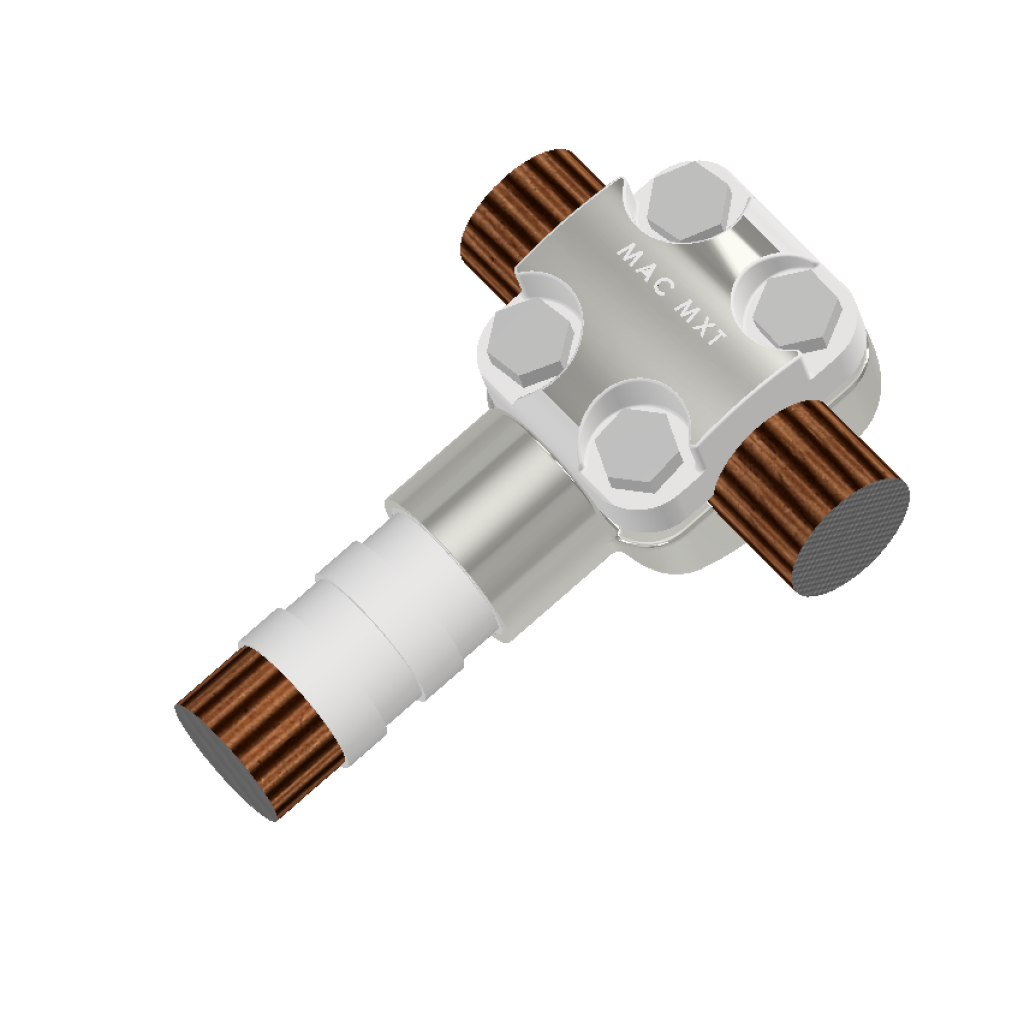

MXT Copper Bolted T-Connector for Cable-to-Cable
Heavy Duty Bolted Copper Compression T-Connector
Constructed of cast copper clamp body with pure seamless copper tubing taps, these tin plated clamp type tee connectors provide permanent compression on the tap while allowing the possibility of future disconnects. The clamping element may be removed from the run without disturbing the tap connection. All hardware is made of high strength silicon bronze.
Product Specifications
For custom configurations, please consult the factory.
Conductor - Run
Conductor - Tap
Catalog Number
B - Inches
H - Inches
J - Inches
L - Inches
1/0 Str.
2 Str.
MXT 1/0-2
1-3/8
1-1/4
3-8/16
4
1/0 Str.
1/0 Str.
MXT 1/0-1/0
1-3/8
1-1/4
3-8/16
4-1/8
2/0 Str.
1/0 Str.
MXT 2/0-1/0
1-3/8
1-3/8
3-8/16
4-1/8
2/0 Str.
2/0 Str.
MXT 2/0-2-0
1-3/8
1-3/8
3-8/16
4-1/4
3/0 Str.
1/0 Str.
MXT 3/0-1/0
1-3/8
1-3/8
3-8/16
4-1/8
3/0 Str.
2/0 Str.
MXT 3/0-2/0
1-3/8
1-3/8
3-8/16
4-1/4
3/0 Str.
3/0 Str.
MXT 3/0-3/0
2
1-3/8
3-8/16
4-1/4
4/0 Str.
1/0 Str.
MXT 4/0-1/0
1-3/8
1-3/8
3-8/16
4-1/8
4/0 Str.
2/0 Str.
MXT 4/0-2/0
1-3/8
1-3/8
3-8/16
4-1/4
4/0 Str.
3/0 Str.
MXT 4/0-3/0
2
1-3/8
3-8/16
4-1/4
4/0 Str.
4/0 Str.
MXT 4/0-4/0
2
1-3/8
3-8/16
4-3/8
250
1/0 Str.
MXT 250-1/0
1-3/8
1-1/2
3-8/16
4-1/8
250
2/0 Str.
MXT 250-2/0
1-3/8
1-1/2
3-8/16
4-1/4
250
3/0 Str.
MXT 250-3/0
2
1-1/2
3-8/16
4-1/4
250
4/0 Str.
MXT 250-4/0
2
1-1/2
3-8/16
4-3/8
250
250
MXT 250-250
2
1-1/2
3-8/16
4-1/2
350
4/0 Str.
MXT 350-4/0
2
1-1/2
3-8/16
4-1/2
350
250
MXT 350-250
2
1-1/2
3-8/16
4-5/8
350
350
MXT 350-350
2
1-1/2
3-8/16
5-1/8
500
250
MXT 500-250
2
1-5/8
3-8/16
5-3/8
500
350
MXT 500-350
2
1-5/8
3-8/16
4-7/8
500
500
MXT 500-500
2
1-5/8
3-8/16
5-1/4
750
250
MXT 750-250
2
1-7/8
3-8/16
5-5/8
750
250
MXT 750-350
2
1-7/8
3-8/16
6-1/4
750
350
MXT 750-500
2
1-7/8
3-8/16
5-3/4
750
750
MXT 750-750
2
1-7/8
3-8/16
6-3/8
1000
500
MXT 1000-500
2
2-1/8
3-8/16
7
1000
750
MXT 1000-750
2
2-1/4
3-8/16
6-3/4
1000
1000
MXT 1000-1000
2-3/4
2-1/4
3-8/16
7-1/8
1500
750
MXT 1500-750
2-3/4
2-3/4
1/2-13
7-3/4
1500
1000
MXT 1500-1000
2-3/4
2-3/4
3/8-16
7-1/4
1500
1500
MXT 1500-1500
2-3/4
2-3/4
1/2-13
7-3/4
2000
1000
MXT 2000-1000
2-3/4
2-7/8
1/2-13
8
2000
1500
MXT 2000-1500
2-3/4
2-7/8
1/2-13
2000
2000
MXT 2000-2000
2-3/4
2-7/8
1/2-13
